32m height 2 seats 6x4 drive Mercedes Aerial Ladder Work Platform
Fire Vehicle pump flow 6000L/min

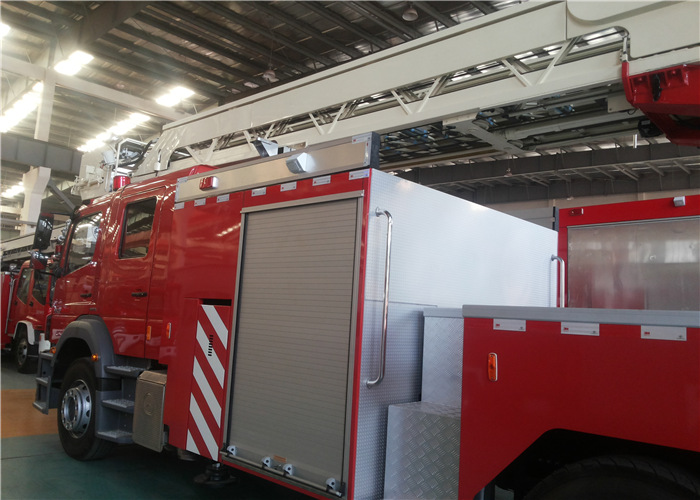

The aerial ladder work platform fire truck is adapted from Mercedes
Benz Actros 3344. 6×4 drive . It equipped with fire pump, water way, aerial working
platform and aerial ladder . It's suitable for high raise building
fire fighting and rescue.
Fire Vehicle
| Dimension (L×W×H) | 10500×2500×3980 (mm) |
| Gross weight | 32100 (kg) |
| Complete vehicle shipping mass | 31950(kg) |
| Seat (inc. driver) | 2 |
| Engine Power | 320/435(kw/hp) |
Fire turck Chassis
| Manufacturer | Mercedes Benz |
| Model | Actros3344 |
| Driving | 6×4 |
| Cabin | Single cab |
| Wheel base | 4500+1350 (mm) |
| Net weight | 9230Kg |
| Max. loading | 23700Kg |
| Max. running speed | 90Km/h |
| Min. turning diameter | ＜22.3m |
| Engine type | V type, 6 cylinder in line turbo, middle cool engine |
| Model | Mercedes OM501 LA |
| Max. engine power | 320Kw/ 1800r/min |
| Maximum torque | 2100N.M/1080rpm |
| Emission standard | Euro V |
| Clutch | Monolithic, Dry |
| Transmission | Mercedes G240-16
fully synchronized |
Full power PTO
| NMV200(N56)i=1.48(speedup), Full power |
PTO of transmission
| MB-NA121-1b(N04)i=1.03/1.24 (speed up) |
Aerial Working platform
| Overall | 2000×900×1100mm |
| Material | High strength seamless material |
| Structure | High strength seamless welded to form a frame structure, the
opening is not greater than 500mm; Non slip tread plate; Set the pedal can be turned over, as put down the bridge, to
facilitate the rescue workers out of the working platform for the
implementation of rescue operations. |
| Pendulum angle | Around 45° |
| Equipment setting | The device is provided with a weighing alarm device and an
ultrasonic anti collision device. |
| Fire fighting and self-protection system | A bucket self spray system, manual valve control work platform;
configuration has DN65 interface with the outlet manual butterfly
valve. |
Repair Part for aerial work platform fire truck
| Item & Model | No. | Remark |
| 1 | O-ring14×2.65G | 6 | GB/T3452.1-1992 |
| 2 | O-ring 11.2×2.65G | 4 | GB/T3452.1 |
| 3 | O-ring 22.4×2.65G | 4 | GB/T3452.1 |
| 4 | O-ring 71×3.55G | 1 | GB/T3452.1 |
| 5 | O-ring 118×5.3G | 1 | GB/T3452.1 |
| 6 | O-ring 150×3.55G | 1 | GB/T3452.1 |
| 7 | O-ring 140×5.3G | 3 | GB/T3452.1 |
| 8 | O-ring 128×5.3G | 1 | GB/T3452.1 |
| 9 | Sense switch SZL-WL-A | 1 | |
| 10 | Travel switch SZL-WL-B | 1 | |
| 11 | Travel switch SZL-WL-E | 1 | |
| 12 | Fuse Tube 5×20 | 10 | 10A |
| 13 | Fuse Tube 5×20 | 20 | 20A |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's the delivery time?
A: 1) 20 days delivery upon receipt of advance deposit if we have
ready in stock for normal standard model.
2) ISUZU & Chinese brand chassis 3 months upon receipt of advance
deposit.
3) European brand chassis 9 months upon receipt of advance deposit.
7. Q: What's your main products?
A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles,
lighting trucks, aerial ladder and platform trucks, airport fire
trucks, water tower fire trucks and other general trucks. The products have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
