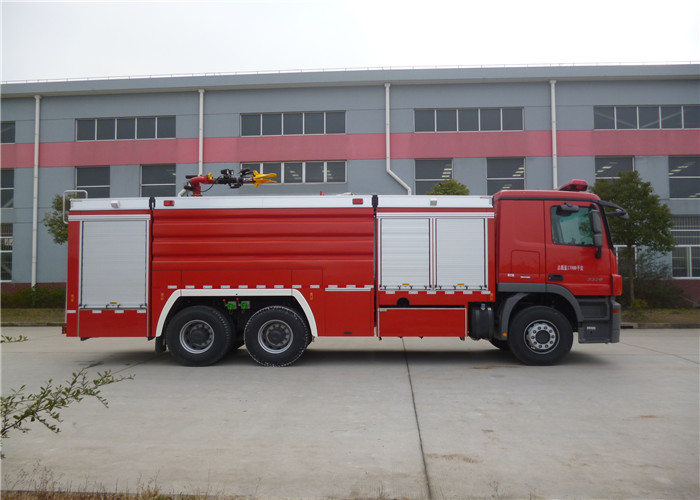

265 KW 12000KG Water/Foam Fire Truck with High Balance Precision
Drive Shaft
Vehicle
| Dimension (L×W×H) | 9720×2500×3700mm |
| Gross weight | 28000kg |
| Complete vehicle shipping mass | 15350kg |
| Seat (inc. driver) | 2 |
| Max. power | 265kw |
Chassis
| Manufacturer | Daimler |
| Model | Actros3336 |
| Drive type | 6x4 |
| Cab | Manual operation hydraulic forward turnover |
| Wheelbase | 4500+1350mm |
| Max. total mass | 18000kg |
| Max. speed | 95km/h |
| Min. turning diameter | <21m |
| Approach angle | 17° |
| Departure angle | 13° |
| Engine type | V type six-cylinder, inter-cooling, electronic unit pump diesel
engine |
| Model | OM501LA.IV/2 |
| Max. power | 265kw |
| Max. torque | 1850N•m |
| Emission standard | China IV/ Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual 16 forward gear |
Pipeline
| Outlet pipeline | 2×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet | 1×DN150 suction coupling 1×DN150 pneumatic butterfly valve |
| Monitor pipeline | 1×DN125 monitor pipeline 1×DN125 butterfly valve |
| Residual water outlet | Water cock |
| Pump drive system | NMV200 |
| Drive shaft | High balance precision |
Onboard document
- Vehicle operation and maintenance manual
- Chassis operating manual
- Chassis operation and maintenance manual
- Chassis quality warranty card
- Chassis certificate, vehicle certificate, 3C logo
- Engine code copy
- Chassis code copy
- Onboard equipment list
- Follow-up service card
- Hand-over list
