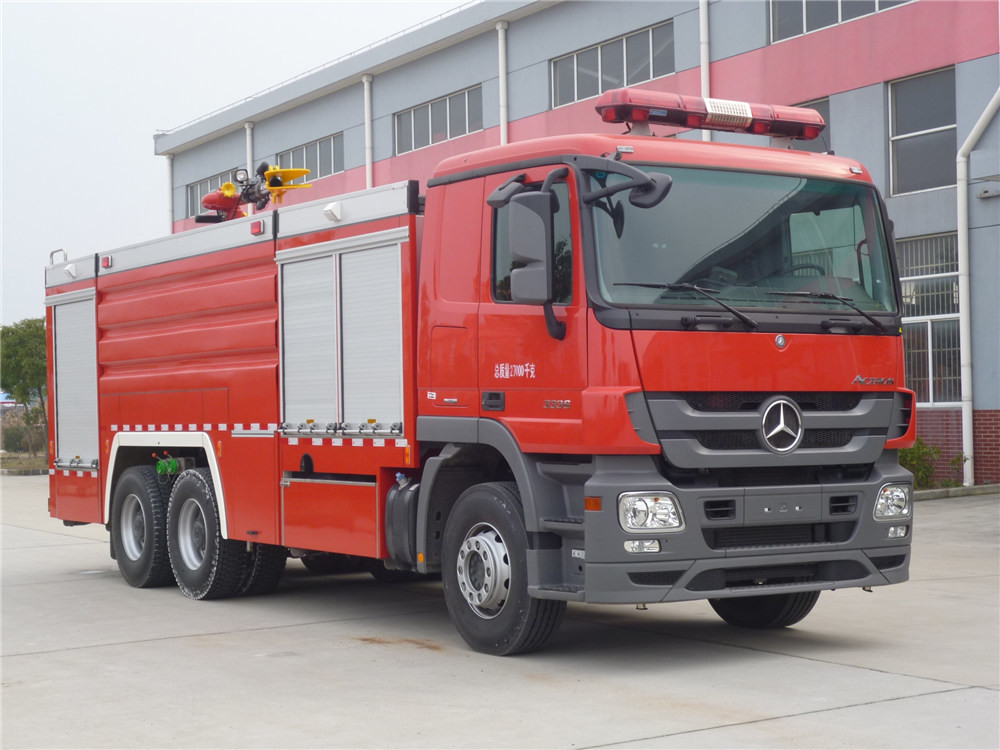

Mercedes Benz 28 Ton High Capacity Water Tanker Fire Engine Fire
Tender Vehicle
The PM120 fire tender fire fighting vehicle is adapted form
Mercedes Benz Actros3336 Chassis. 6x4 drive and max power 265kw. It
equipped with large tender of fire extinguisher, 6500 kg water and
6000 kg foam. The Tender fire vehicle can be used on most
situations of fire fighting and fire fighting rescue.
Vehicle details for fire tender vehicle
1. Dimension (L×W×H) : 9720×2500×3700mm
2. Gross weight: 28000kg.
3. Complete vehicle shipping mass: 15350kg
4. Seats : 2, include driver
5. Max. power : 265kw
Chassis for fire tender vehicle
| Manufacturer | Daimler |
| Model | Actros3336 |
| Drive type | 6x4 |
| Cab | Manual operation hydraulic forward turnover |
| Wheelbase(mm) | 4500+1350 |
| Max. total mass (kg) | 18000 |
| Max. speed (km/h) | 95 |
| Min. turning diameter(m) | <21 |
| Approach angle | 17 degree |
| Departure angle | 13 degree |
| Engine type | V type six-cylinder, inter-cooling, electronic unit pump diesel
engine |
| Model | OM501LA.IV/2 |
| Max. power (kw) | 265 |
| Max. torque (N•m) | 1850 |
| Emission standard | China IV/ Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual 16 forward gear |
Liquid tank for fire tender vehicle
| Capacity | Water: 6500kg Foam: 6000kg |
| Material | 304 high quality corrosion resistant plate |
| Structure | Total side girder |
| Pressure | 1.0MPa |
| Device | 2 manhole
1 overflow device
2 liquid level sensor
2 DN50 drain outlet with valve
4 filling pipe end
Conform to rule GA39.4-92 |
Side girder for fire tender vehicle
Features: made of welding high quality profiled steels, two
longitudinal beams through a plurality of beam intensity bearing
joint of high strength bolt connection. The side beam is installed,
use girder structure, to ensure that the original car beam of
uniform stress, improve the service life of the girder, and reduce
deformation caused by components twisted.
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for
firefighting trucks products which nearby Pudong International
Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal
with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management
team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have
ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance
deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q:What's your main products?
A:Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles,
pumper fire truck, lighting trucks, aerial ladder and platform
trucks, airport fire trucks, water tower fire trucks and other
general fire trucks. The products have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
