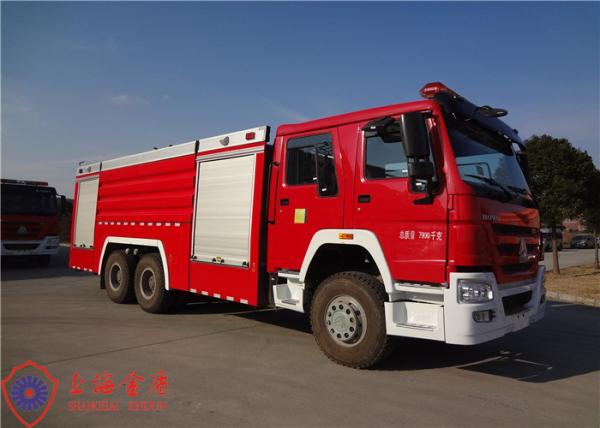

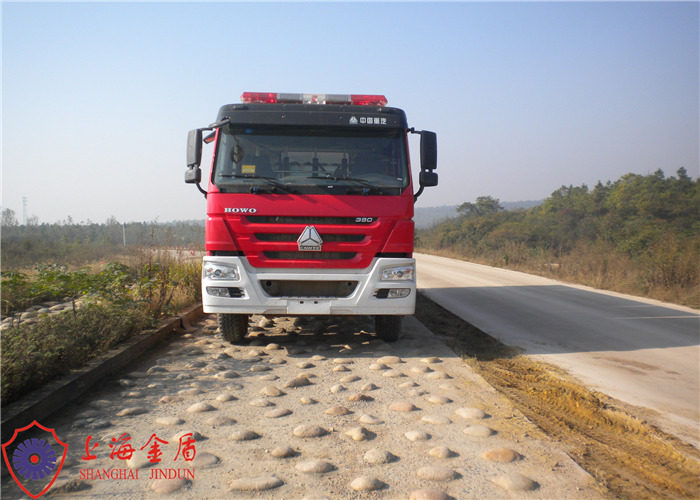

Six Seats China Chassis 6x4 Drive Departure Angle 12 Degree Foam
Fire Truck 27 Ton Huge Capacity
Vehicle
| Dimension (L×W×H) | 9920×2500×3600mm |
| Gross weight | 27550kg |
| Complete vehicle shipping mass | 14900kg |
| Seat (inc. driver) | 6 |
| Max. power | 276kw |
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5347V4347D5 |
| Drive type | 6x4 |
| Cab | Flattop metal forward turnover |
| Wheelbase | 4325+1350mm |
| Max. speed | 90km/h |
| Min. turning diameter | <22m |
| Approach angle | 16° |
| Departure angle | 12° |
| Engine type | In-line six-cylinder, water inter-cooling, direct injection diesel
engine |
| Model | D10.38—40 |
| Max. power | 276kw |
| Max. torque | 1560N•m |
| Emission standard | China IV |
| Clutch | Pull, dry |
| Gearbox model | Manual, 9 forward gear |
| Tyre | 12.00R20/10 |
Fire monitor
| Model | Elkhart, Vulcan 8500-02 |
| Position | Rear roof |
| Flow | 80L/s |
| Pressure | 1.0MPa |
| Range | water≥75m ,foam≥70m |
| Rotation angle | Level ≥360° Max. elevation angle ≥+45° Max. depression angle ≥-7° |
Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate.
Structure: adopt the gas springs plus shutter fasten, safe and
reliable, each petal plate bearing ≥150Kg.
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for
firefighting trucks products which nearby Pudong International
Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal
with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management
team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have
ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance
deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
