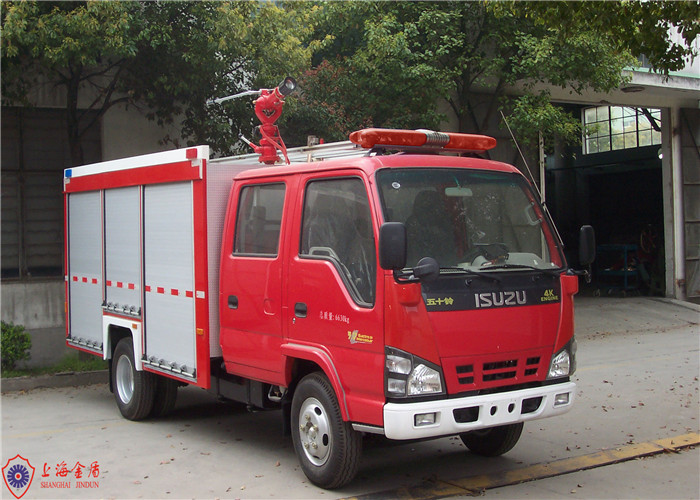

4x2 Drive Water Tanker Fire Truck ISO9001 Approved With Water Cooling Engine

Shanghai Jindun special vehicle Equipment Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 4x2 Drive Water Tanker Fire Truck ISO9001 Approved With Water Cooling Engine from wholesalers

    Buy cheap 4x2 Drive Water Tanker Fire Truck ISO9001 Approved With Water Cooling Engine from wholesalers
    • Buy cheap 4x2 Drive Water Tanker Fire Truck ISO9001 Approved With Water Cooling Engine from wholesalers
    • Buy cheap 4x2 Drive Water Tanker Fire Truck ISO9001 Approved With Water Cooling Engine from wholesalers

    4x2 Drive Water Tanker Fire Truck ISO9001 Approved With Water Cooling Engine

    Ask Lasest Price
    Brand Name : CIMC Jindun
    Model Number : JDX5070GXFSG20/F
    Certification : ISO9001,CCC
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 90 days after sign contract
    Supply Ability : 350 units/year
    • Product Details
    • Company Profile

    4x2 Drive Water Tanker Fire Truck ISO9001 Approved With Water Cooling Engine

    4x2 Drive Water Tanker Fire Truck ISO9001 Approved With Water Cooling Engine


    Chassis

    ManufacturerISUZU
    ModelQL1070A1HWY
    Drive type4x2
    CabEquipped with 3 air resporator
    Wheelbase3360mm
    Chassis net weight2070kg
    Max. allowable load6725kg
    Max. speed105km/h
    Min. turning diameter<13.6m

    Vehicle

    Dimension (L×W×H)6255×1945×2940 (mm)
    Gross weight6630(kg)
    Complete vehicle shipping mass4255 (kg)
    Extinguishant capacityWater: 2000L
    Seat (inc. driver)2+3
    Max. power88/2900 kw/hp

    Engine typeIn-line six-cylinder, four-stroke, water cooling, turbocharged engine
    Model4KH1-TCG40
    Max. power88Kw/ 2900rpm/min
    Max. torque290N.M/1500rpm
    Emission standardChina IV
    ClutchMonolithic, dry, diaphragm spring, hydraulic control
    GearboxMSB manual

    Pipeline

    Outlet pipeline2×DN65 ordinary pressure outlet
    Suction inlet

    1×DN100 suction coupling with lip cover

    1×DN150 manual butterfly valve

    Filling pipe end

    1×DN65 outside filling pipe end

    1×DN40 filling pipe end with valve

    Residual water outletWater cock
    Cooling waterCooling installation

    Onboard document

    1. Vehicle operation and maintenance manual
    2. Chassis operating manual
    3. Chassis operation and maintenance manual
    4. Chassis quality warranty card
    5. Chassis certificate, vehicle certificate, 3C logo
    6. Engine code copy
    7. Chassis code copy
    8. Onboard equipment list
    9. Follow-up service card
