    Gross Weight 28000kg Water Tanker Fire Truck With 12000kg Capacity Liquid Tank

    Ask Lasest Price
    Brand Name : Jindun
    Model Number : JDX5280GXFSG120/B
    Certification : ISO9001,CCC
    Price : Factory price, Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 90 days after sign contract
    Supply Ability : 300 units fire truck/year
    • Product Details
    • Company Profile

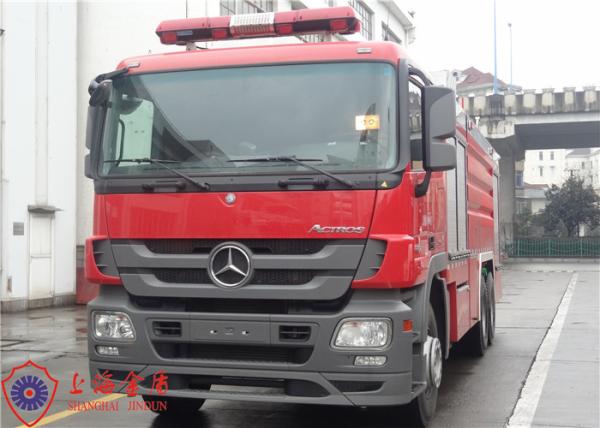

    Gross Weight 28000kg Water Tanker Fire Truck With 12000kg Capacity Liquid Tank

    Gross Weight 28000kg Water Tanker Firefighting Truck With 12000kg Liquid Tank



    Water Tanker Firefighting Vehicle

    Dimension (L×W×H)9720×2500×3700 (mm)
    Gross weight28000 (kg)
    Complete vehicle shipping mass15350 (kg)
    Seat (inc. driver)2
    Max. power265kw


    Chassis for water tanker firefighting truck

    ManufacturerDaimler
    ModelActros3336
    Drive type6x4
    CabFlattop Four door lengthen cab
    Wheelbase4500+1350mm
    Max. speed95km/h
    Min. turning diameter≤21m
    Approach angle17°
    Departure angle13°
    Engine typeIn-line six-cylinder, turbo inter-cooling, electronic unit pump diesel engine
    ModelOM501LA.IV/2
    Max. torque1850N.M
    Emission standardChina IV/euro IV
    ClutchMonolithic, Dry
    GearboxManual, 16 forward gear


    Liquid tanker

    CapacityWater: 12000kg
    Material304 high quality corrosion resistant plate
    StructureTotal side girder
    Device

    1 ingate
    1 overflow device
    1liquid level sensor
    1 DN50 drain outlet with valve
    4 filling pipe end
    Conform to rule GA39.4-92


    Side girder for water tanker fire truck

    Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.


    Fire Truck nameplate
