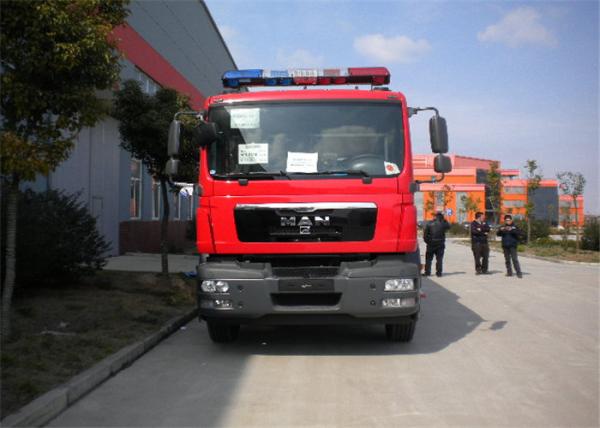

Six Seats Water Tanker Fire Truck Pump Flow 60L/S Aluminum Water
Tank 5684L
Vehicle
| Dimension (L×W×H) | 8125×2480×3350 (mm) |
| Gross weight | 15330 (kg) |
| Complete vehicle shipping mass | 9196 (kg) |
| Extinguisher capacity | Water: 5684L |
| Seat (inc. driver) | 2+4 |
| Max. power | 177/241kW/hp |
Chassis
| Manufacturer | ISUZU |
| Model | QL1160AMFRY |
| Drive type | 4x2 |
| Cab | 1+1+4 4x air respirator |
| Wheelbase | 4500mm |
| Chassis net weight | 5170kg |
| Max. load | 16000kg |
| Max. speed | 95km/h |
| Min. turning diameter | ＜15.6m |
| Engine type | In-line six-cylinder, four-stroke, water-cooling, turbocharged
engine |
| Model | 6HK1-TCNG40 |
| Max. power | 177kW/ 2400r/min |
| Max. torque | 706N.M/1450rpm |
| Emission standard | China IV |
| Clutch | Monolithic, dry, spiral spring |
| Gearbox | MLD-6Q |
Fire monitor
| Model | PS24-48 |
| Pressure/ Flow | 1.0MPa/2880L/min |
| Range | Water≥60m |
| Rotation angle | Pitching —15°to +70° Level 360° |
Water tank
| Manufacturer | Shanghai Jindun |
| Capacity | Water: 5684kg |
| Material | 304 Qualitative stainless steel |
| Structure | Built –in, welding structure |
| Device | 1 ingate 1 overflow device 1 liquid level sensor 1 drain outlet with valve 2 filling pipe end |
Pedal plate
- Location: At the bottom of roller shutter door
- Material: Steel frame covered by aluminum alloy checkered plate
- Structure: adopt the gas springs plus shutter fasten, safe and
- Reliable, each petal plate bearing ≥150Kg
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's your main product?
A: Our main product include : water & foam tank trucks, CAFS fire
trucks, chemical fire trucks, emergency rescue vehicles, lighting
trucks, aerial ladder and platform trucks, airport fire trucks,
water tower fire trucks and other general fire trucks. The products
have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
