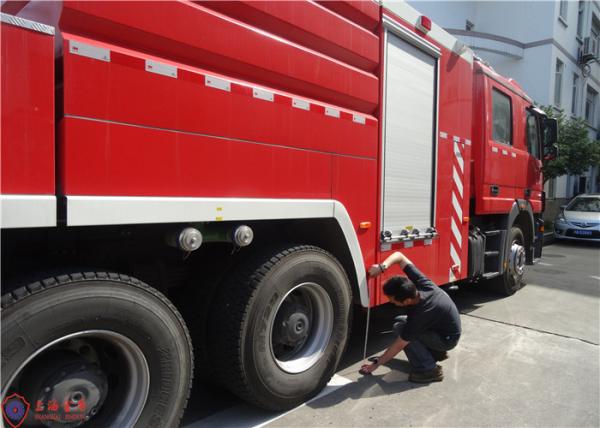

39 Ton Water Tower Fire Truck Imported Chassis Full Authorized
Total Mass 31000KG

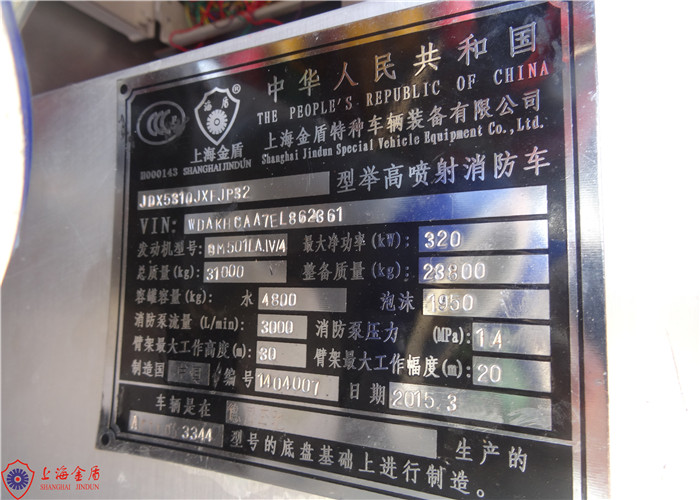

JDX5310JXFJP32 fire truck is a combination of water, foam, high jet
three functions in a new class of high-lift truck. It is a domestic
advanced level of multi-purpose fire fighting vehicles. The car is
used electro-hydraulic proportional and off centrally control
technology with fully hydraulic drive, three telescopic + folding
side arranged a fire truck.
The whole vehicle
| Full authorized total mass | 31000 kg |
| Vehicles curb weight | 23800 kg |
| Seats | 2 + 4,including the driver |
| Maximum power | 320/435 Kw/hp |
Chassis
| Manufacturer | Mercedes-Benz |
| Model | Mercedes Actros3344 |
| Drive Type | 6 × 4 |
| Cab | modified Crew (1 + 1 + 4),Rear rack installation four SCBA |
| Wheelbase | 4500 + 1350 mm |
| Chassis weight | 9230Kg |
| Maximum allowable load | 23700Kg |
| Maximum speed | 104Km / h |
| Engine | V-type 6-cylinder turbocharged and intercooled diesel engine |
| Model | Mercedes-Benz OM501 LA |
| Maximum engine power | 320Kw / 1800r / min |
| Maximum torque | 2100N.M / 1080rpm |
| Emission standard | Euro IV |
| Clutch | monolithic, dry type |
| Transmission | Mercedes-Benz G240-16, fully synchronized gearbox. |
Fire systems
Fire performance parameters
Water / foam range: ≥65 / 60m
Foam mixer ratio: 6% (manual adjustment)
solution tank
Manufacturing: Shanghai Jindun Special Vehicle Equipment Co., Ltd.
Capacity: Water: 4800Kg Foam: 1900Kg
Material: 304 stainless steel tank, stainless steel top plate 304
patterns;
Structure: damping rubber flexible support, which consists of
longitudinal and transverse anti-swing plate is mounted on the
sub-frame;
Equipment: 2 individual openings with quick-locking and opening
device;
2 level indicator;
2 outfalls, with stainless steel or brass ball valves;
Within a water inlet;
Four external water inlets;
Fire Monitor
Model: AKRON 3578 type fire gun (with nozzle 5177)
Manufacturer: AKRON
Flow rate: 15.5 ~ 80L / s
Pressure: ≤1.0MPa
Cheng shot: water ≥65m, foam ≥60m
Tilt angle: -45 ° ~ + 90 °
Nominal diameter: 100mm
