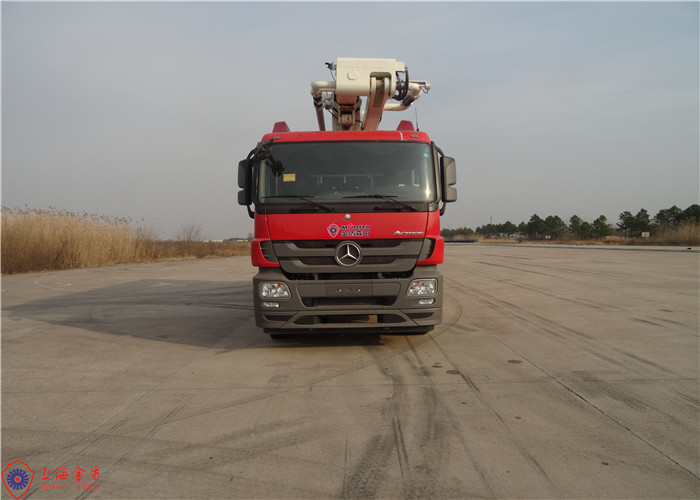

32m Height Max Loading 23700Kg Water Tower Fire Truck with 4800kg
Water Tanker
JDX5310JXFJP32 fire truck is a combination of water, foam, high jet
three functions in a new class of high-lift truck. It is a domestic
advanced level of multi-purpose fire fighting vehicles. The car is
used electro-hydraulic proportional and off centrally control
technology with fully hydraulic drive, three telescopic + folding
side arranged a fire truck.
The whole vehicle
| Full authorized total mass | 31000 kg |
| Vehicles curb weight | 23800 kg |
| Persons QTY | 2 + 4,including the driver |
| Maximum power | 320/435 Kw/hp |
Chassis
| Manufacturer | Mercedes-Benz |
| Model | Mercedes Actros3344 |
| Drive Type | 6 × 4 |
| Cab | modified Crew (1 + 1 + 4),Rear rack installation four SCBA |
| Wheelbase | 4500 + 1350 mm |
| Chassis weight | 9230Kg |
| Maximum allowable load | 23700Kg |
| Maximum speed | 104Km / h |
| Engine | V-type 6-cylinder turbocharged and intercooled diesel engine |
| Model | Mercedes-Benz OM501 LA |
| Maximum engine power | 320Kw / 1800r / min |
| Maximum torque | 2100N.M / 1080rpm |
| Emission standard | Euro IV |
| Clutch | monolithic, dry type |
| Transmission | Mercedes-Benz G240-16, fully synchronized gearbox. |
Fire systems
Fire performance parameters
Water / foam range: ≥65 / 60m
Foam mixer ratio: 6% (manual adjustment)
solution tank
Manufacturing: Shanghai Jindun Special Vehicle Equipment Co., Ltd.
Capacity: Water: 4800Kg Foam: 1900Kg
Material: 304 stainless steel tank, stainless steel top plate 304
patterns;
Structure: damping rubber flexible support, which consists of
longitudinal and transverse anti-swing plate is mounted on the
sub-frame;
Equipment: 2 individual openings with quick-locking and opening
device;
2 level indicator;
2 outfalls, with stainless steel or brass ball valves;
Within a water inlet;
Four external water inlets;
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for
firefighting trucks products which nearby Pudong International
Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal
with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management
team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have
ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance
deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
