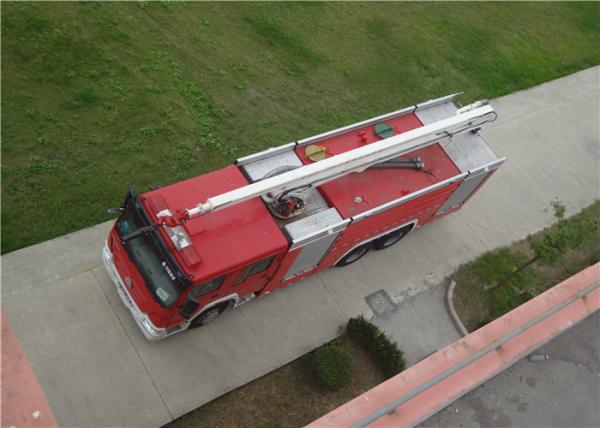

    Max Power 320KW 6x4 Drive High Spray Water Tower Fire Truck 20m Working Height

    Ask Lasest Price
    Brand Name : CIMC Jindun
    Model Number : JDX5310JXFJP20
    Certification : ISO9001,CCC
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 350 units/year
    Delivery Time : 90 days after sign contract
    • Product Details
    • Company Profile

    Max Power 320KW 6x4 Drive High Spray Water Tower Fire Truck 20m Working Height

    Max Power 320KW 6x4 Drive High Spray Water Tower Fire Truck 20m Working Height


    Main specification

    Vehicle


    Dimension (L×W×H)10970×2480×3900 (mm)
    Chassis brandMercedes Benz
    Seat (inc. driver)2+4 seats (4 doors)
    Max. power320KW

    Chassis


    ManufacturerGermany Mercedes Benz
    ModelActros3344
    Driving6×4
    Cabin1+1+4
    Wheel base4500+1350 (mm)
    Curb weight14550Kg
    Full loading weight28000Kg
    Max. running speed100Km/h
    Engine typeV type six-cylinder, inter-cooling, electronic unit pump diesel engine
    ModelOM501LA.IV/4
    Engine power320Kw/1800rpm
    Maximum torque2100N.M
    Emission standardEURO IV
    ClutchMonolithic, dry
    GearboxManual-automatic

    Fire pump

    ModelCB10/100-ZX CHINESE FIRE PUMP
    Flow rate6000L/min(1.0MPa), 4200L/min(1.6MPa)
    Water diversionFour pistons water diversion device
    SealMechanical seal

    Boom structure

    2 folding boom, welded with high-strength steel
    Max. working height20m
    Max. working radius9m
    Pump flow100L/s
    Boom extending time≤60s
    Outrigger extending time≤35s
    Hydraulic system pressure20MPa
    Max. wind velocity12.5m/s
    Outrigger longitudinal and transverse5200×2070mm
    Allowed working range: Shown as pic1

    Controller

    Finland EPEC2024 imported with original packaging.


    Remote Control

    Italian AUTEC wireless remote controller imported with original packaging, effective working radius 100m.
