    6x4 Drive Six Seats Water Tank Firefighting Truck with Flattop Length Cab

    Ask Lasest Price
    Brand Name : Jindun
    Model Number : JDX5330GXFSG180/H
    Certification : ISO9001/CCC
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 90 days after sign contract
    Supply Ability : 350 units/year
    • Product Details
    • Company Profile

    6x4 Drive Six Seats Water Tank Firefighting Truck with Flattop Length Cab

    6x4 Drive Six Seats Water Tank Firefighting Truck with Flattop Length Cab

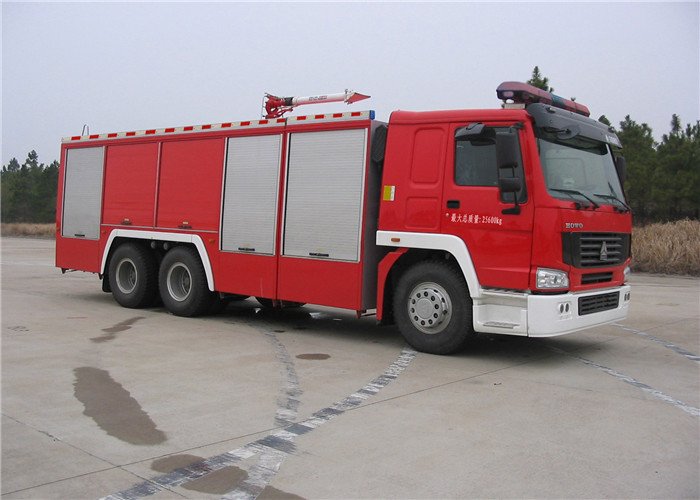

    The SG180 water tanker fire truck is adapted from Sinotruk HOWO chassis with flattop four door length cab, 6x4 drive. Max speed 85km/h. With manual transmission. The water tanker fire vehicle is equipped with China brand fire pump and fire fire monitor. Flow of the pump is 90L/s. The vehicle is suitable for fire fighting and fire rescue.


    1. Vehicle

    Dimension (L×W×H)10180×2500×3650mm
    Gross weight33320kg
    Complete vehicle shipping mass15270kg
    Seat (inc. driver)6
    Max. power276kw

    2. Chassis

    ManufacturerSinotruk HOWO
    ModelZZ5347V4647D5
    Drive type6x4
    CabFlattop four door length
    Wheelbase4600+1350mm
    Max. speed85km/h
    Min. turning diameter<22m
    Approach angle16°
    Departure angle12°
    Engine typePressure combustion, in-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine
    ModelD10.38-40
    Max. power276kw
    Max. torque1560N•m
    Emission standardChina IV/ Euro IV
    ClutchMonolithic, dry
    Gearbox modelManual 10forward gear

    3. Fire pump

    ManufacturerSHANGHAI XIONGZHEN
    ModelCB10/100-XZ
    Flow90L/s
    Pressure1.0MPa
    Water diversionPiston primer pump
    Max. vacuum degree≥85 kPa
    Priming time≤80s

    4. Painting

    Red paint: cab, body (shutter doors, except decorative strip)

    White: fender-guard.



    FAQ:

    1. Q:Are you a factory or a trade company?

    A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.


    2. Q:Where is your factory located?

    A:We are located in Shanghai Province,China.


    3. Q:What's your payment method?

    A: T/T and L/C are preferred.


    4.Q:Do you arrange shipment for the vehicles?

    A:Yes, we can arrange shippment based on trade terms.


    5. Q: How is the packing?

    A:All the packing comply with exporting standard.


    6. Q: What's your main product?

    A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.


    Any other questions, please do not hesitate to contact with us.
