Heavy Duty 6x4 Drive Six Seats Water Tanker Fire Truck Flattop Four
Door Length Cab

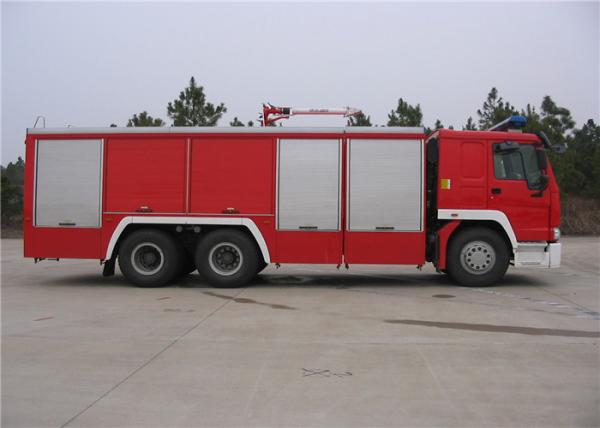

SG180/H water tank fire truck is refitted from the Sinotruk Howo
chassis. The layout of the whole vehicle is reasonable. The
equipment compartment, tank and pump room are of split structure,
with novel and coordinated appearance. CB10/100-XZ fire pump
produced by Shanghai Xiongzhen Fire Protection Equipment Co., Ltd.
is installed on it, and PL64 fire monitor produced by Chengdu West
Fire Protection Machinery Co., Ltd. is used for roof monitor, with
compact structure and convenient operation and maintenance.
Vehicle
| Dimension (L×W×H) | 10180×2500×3650mm |
| Gross weight | 33320kg |
| Complete vehicle shipping mass | 15270kg |
| Seat (inc. driver) | 6 |
| Max. power | 276kw |
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5347V4647D5 |
| Drive type | 6x4 |
| Cab | Flattop four door length |
| Wheelbase | 4600+1350mm |
| Max. speed | 85km/h |
| Min. turning diameter | <22m |
| Approach angle | 16° |
| Departure angle | 12° |
| Engine type | Pressure combustion, in-line six-cylinder, water cooling,
inter-cooling, direct injection diesel engine |
| Model | D10.38-40 |
| Max. power | 276kw |
| Max. torque | 1560N•m |
| Emission standard | China IV/ Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual 10forward gear |
Fire pump
| Manufacturer | SHANGHAI XIONGZHEN |
| Model | CB10/100-XZ |
| Flow | 90L/s |
| Pressure | 1.0MPa |
| Water diversion | Piston primer pump |
| Max. vacuum degree | ≥85 kPa |
| Priming time | ≤80s |
Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate
Structure: adopt the gas springs plus shutter fasten, safe and
Reliable, each petal plate bearing ≥150Kg
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
