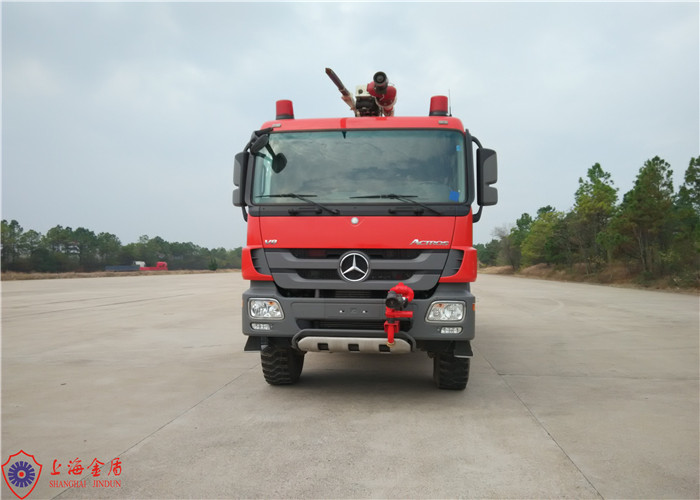

29 Ton 6x6 Drive ARFF Airport Airplane Fire Truck with Foldable
Rescue Boom
Airport fire truck, also called airplane fire truck, ARFF vehicle (
aircraft rescue and fire fighting vehicle), RIV (Rapid intervention
vehicle) can be used for rapidly rescuing aircraft passengers and
crew, and extinguishing fire. It is also applicable to building
firefighting.
The total weight of JX110 airport fire truck is 29 tons, using the
German Mercedes-Benz ACTROS 3360 chassis, 6 × 6 drive, Germany
Mercedes-Benz OM502LA water-cooled V-type eight-cylinder 24-valve
turbocharged and intercooled diesel engine electronically
controlled common rail injection, 9500L water tank, 1200L foam
tank, equipped with controlling fire-fighting equipment and rescue
equipments in the cab.
Vehicle
Overall size | ≤10000mm×2500mm×3900mm |
Wheelbase | 4380mm＋1450mm |
Gross weight | 29000kg |
Fire-extinguishing agents | water 9500L,foam 1200L, dry powder 300kg |
Max. engine power | 440KW (598hp)/1800r/min |
Emission standard | EURO IV |
Max. speed | 110km/h |
Max. speed | ≥40km/h, when water pump works with full power |
Chassis Parameter:
| Chassis manufacturer | Daimler AG |
| Origin country | Made in Germany |
| Chassis model | ACTROS 3360, 6×6 drive |
| Min. turning diameter | about 20.3m |
| Min. ground clearance | front 408mm, rear 391mm |
| Engine | OM502LA, water-cooled V-type eight-cylinder 24-valve turbocharged,
intercooled diesel engine electronically controlled common rail
injection, temperature-controlled fan, oil and water separator with
heating function with fuel filter, flame preheating cold start
system (suitable for cold regions) , 82 db noise reduction, cruise
control system, air cleaner element with safety filter element,
etc. |
| Engine manufacturer | Daimler AG |
| Address | Stuttgart D-70546, F.R. Germany |
| Brand | Mercedes Benz |
| Emission | 15.928L |
| Max. power | 440kW (598HP)/1800r/min |
| Max. torque | 2800N·m/1080r/min |
| Max. admissible total weight | 29000kg |
| Fuel tank | 300L steel main fuel tank, fuel tank at right position, fuel cap
with lock, oil filler strainer,fuel coarse filter, with heatable
oil-water separator, fuel preheating systems. |
| Electrical | Battery 2 × 12V / 220Ah, generator 28V / 100A / 2800W. |
| Gearbox | Type G 240-16,16 forward gears, 2 reverse gears, Mercedes Benz
Telligent® Automatic intelligent shift system. |
| Gearbox Manufacturer | Daimler AG |
| COUNTRY | Germany |
| Wheelbase | 4380mm + 1450mm |
| Steering | hydraulic power assisted, height and angle of steering wheel is
adjustable, with steering wheel lock. |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's your main product?
A: Our main product include : water & foam tank trucks, CAFS fire
trucks, chemical fire trucks, emergency rescue vehicles, lighting
trucks, aerial ladder and platform trucks, airport fire trucks,
water tower fire trucks and other general fire trucks. The products
have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
