ARFF Aircraft Fire and Rescue Truck Airport Fire Truck with
Scientific Lighting System
Airport fire truck, aircraft rescue and fire trucks can be used for
rapidly rescuing aircraft passengers and crew, and extinguishing
fire. It is also applicable to building firefighting.
The total weight of airport fire truck is 29 tons, using the German
Mercedes-Benz ACTROS 3360 chassis, 6 × 6 drive, Germany
Mercedes-Benz OM502LA water-cooled V-type eight-cylinder 24-valve
turbocharged and intercooled diesel engine electronically
controlled common rail injection, 9500L water tank, 1200L foam
tank, equipped with controlling fire-fighting equipment and rescue
equipments in the cab.
Warning System
- Warning device color: Red
- Electric warning siren: Electric public address system, fitting
with Wail-Yelp siren,microphone and 100W loudspeaker,installed on
the cab roof
- Side alarm lights: 3 units of red/blue flashing lights on each side
of vehicle
Lighting System
| Rear devices | 2 rear position lamp | red |
| 2 brake light | red |
| 2 turn signal | amber |
| 2 hazard warning signal | amber |
| 2 rear retro-reflector | red |
| 1 rear fog lamp | red |
| 2 Reversing light | white |
| 2 clearance lamps | red |
| 1 license plate light | white |

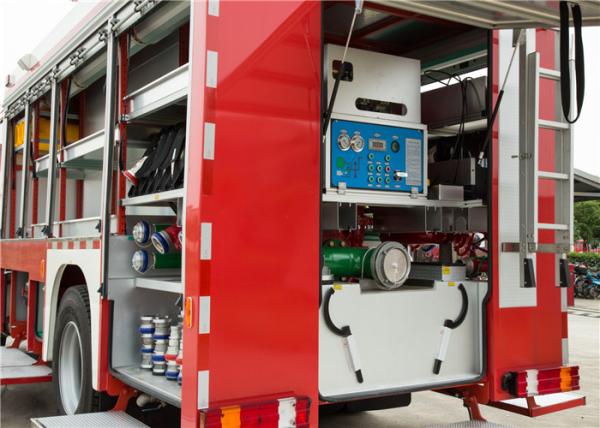

| Storage department | 1 LED light in each one | |
| Search light | 70KW search light installed on the vehicle roof (1 pc) | |
| Battery charge | A 220V battery charging interface, with fast connections, can be
automatically disengaged when the vehicle starts to move, in line
with Chinese standards, with automatic protection devices,
installed in the rear of the car. | |
Touch System
Position: in the cab.
Touch Display Screen:
| Model | 12 inch |
| Function | Display fire fighting system parameters: oil level in tank, pump
rotate speed, working pressure, water level in tank, back car
shows, fire extinguishing system switches and so on. |
| Introduction | Original controller, function as follows: overvoltage protection,
high temperature protection, outlet short-circuit protection,
impact resistance, level of protection IP67, approval by CE. |
| Sensor | Electrical control system sensors, such as pressure sensors and
proximity switches etc., to ensure the stability of the control
system. |
| Remote control | In addition to centralized controls in cab, fire monitor and other
equipment can also be operated by wireless remote control,
increasing operator visibility. Co-driver can be directly operated
by hands, to solve the problem that the traditional operation is
inconvenient because of traditional operating device located
between the driver and co-driver. |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's your main product?
A: Our main product include : water & foam tank trucks, CAFS fire
trucks, chemical fire trucks, emergency rescue vehicles, lighting
trucks, aerial ladder and platform trucks, airport fire trucks,
water tower fire trucks and other general fire trucks. The products
have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
