    ISO9001 Certificated Steel Frame Emergency Fire Vehicle Heavy Rescue Truck

    Ask Lasest Price
    Brand Name : CIMC Jindun
    Model Number : JDX5130TXFJY100
    Certification : ISO9001,CCC
    Price : Factory price, negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 units/year
    Delivery Time : 90 days after sign contract
    • Product Details
    • Company Profile

    ISO9001 Certificated Steel Frame Emergency Fire Vehicle Heavy Rescue Truck

    ISO9001 Certificated Steel Frame Emergency Fire Vehicle Heavy Rescue Truck with Winch on front and Lift Crane on Rear

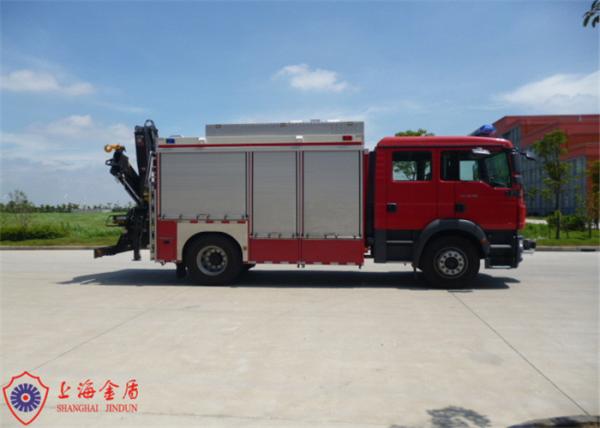

    The JY100 emergency rescue fire vehicles is modified from MAN chassis. It's 4x2 drive with six seats. It equipped hauling winch on front of vechile , ligting crane on rear and telescopic light tower on roof . It also eqiupped with 100 units of rescue tools. The emergency rescue fire truck is very practical and funtional which suitable for neally all the rescue site.


    Vehicle

    Dimension (L×W×H)8655×2500×3500mm
    Gross weight13066kg
    Complete vehicle shipping mass12616kg
    Rescue equipment quantity100pcs
    Seat (inc. driver)2+4

    Chassis

    ManufacturerMAN
    ModelTGM 18.290
    Drive type4x2
    CabCrew cab
    Wheelbase4425mm
    Max. total mass18000kg
    Max. speed96km/h
    Min. turning diameter<15.6m
    Engine typeIn-line six-cylinder, inter-cooling, high pressure common rail, electronic control
    ModelD0836LFL30
    Max. power213kw
    Max. torque1150N.M
    Emission standardChina IV
    Gearbox modelZF 9S-1310 OD Manual

    Equipment layout principles

    1, According to combat programming and combat development design

    equipment integration

    2, According to human body engineering principle design all kinds of equipment frames.

    3, According to using logic and frequency of use place equipment

    4, 1-2 action can take any equipment standing on the ground or pedal

    5, Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.

    Pedal plate

    Location: At the bottom of roller shutter door.

    Material: Steel frame covered by aluminum alloy checkered plate

    Structure: adopt the gas springs plus shutter fasten, safe and

    Reliable, each petal plate bearing ≥150Kg



    FAQ

    1. Q: Why should we choose you ?

    A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

    b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

    c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.


    2. Q:What's the delivery time?

    A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

    b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

    c. European brand chassis 9 months upon receipt of advance deposit.


    3. Q:What's your payment method?

    A: T/T and L/C are preferred.


    4.Q:Do you arrange shipment for the vehicles?

    A:Yes, we can arrange shippment based on trade terms.


    5. Q: How is the packing?

    A:All the packing comply with exporting standard.


    6. Q:What's your main products?

    A:Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, pumper fire truck, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.


    Any other questions, please do not hesitate to contact with us.
