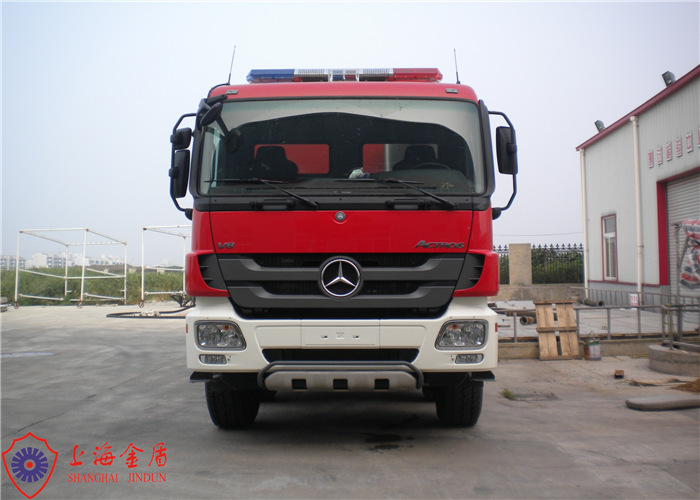

6X4 drive six seats imported chassis Foam fire truck vehicle
Rotatable type cab
1. Vehicle
1.1 Dimension (L×W×H): 11310×2500×3630mm.
1.2 Gross weight: 38650kg.
1.3 Complete vehicle shipping mass: 20600kg.
1.4 Seat (inc. driver): 6.
1.5 Max. power: 440 kw.
2. Chassis
| Manufacturer | Daimler |
| Model | Actros4160 |
| Drive type | 8x4 |
| Cab | Rotatable type |
| Wheelbase | 1700+4300+1350mm |
| Max. speed | 95km/h |
| Min. turning diameter | ≥26m |
| Approach angle | 23° |
| Departure angle | 11° |
| Engine type | Inline eight-cylinder, four-stroke, water-cooling, electronic
direct injection diesel engine |
| Model | OM502LA.IV/3 |
| Max. power | 440kw |
| Max. torque | 2800N•m |
| Emission standard | China IV/Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual, 16 forward gear |
| Tyre | Forward: 4x 385/65R22.5
Rear: 8x 315/80R22.5 |
3. Cab
| Structure | Rotatable type |
| Seat | 1+1+4 |
| Equipment | Except the original equipments. There is a storage box with cover
under the seat, embedded air breathing apparatus fixed mount in the
seats |
4. Side girder
Features: made of welding high quality profiled steels, two
longitudinal beams through a plurality of beam intensity bearing
joint of high strength bolt connection. The side beam is installed,
use girder structure, to ensure that the original car beam of
uniform stress, improve the service life of the girder, and reduce
deformation caused by components twisted.
5. Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate
Structure: adopt the gas springs plus shutter fasten, safe and
reliable, each petal plate bearing ≥150Kg.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's your main product?
A: Our main product include : water & foam tank trucks, CAFS fire
trucks, chemical fire trucks, emergency rescue vehicles, lighting
trucks, aerial ladder and platform trucks, airport fire trucks,
water tower fire trucks and other general fire trucks. The products
have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
