Electric Primer Pump Big Foam Fire Trucks ,Max Power 325KW Modern
Fire Truck

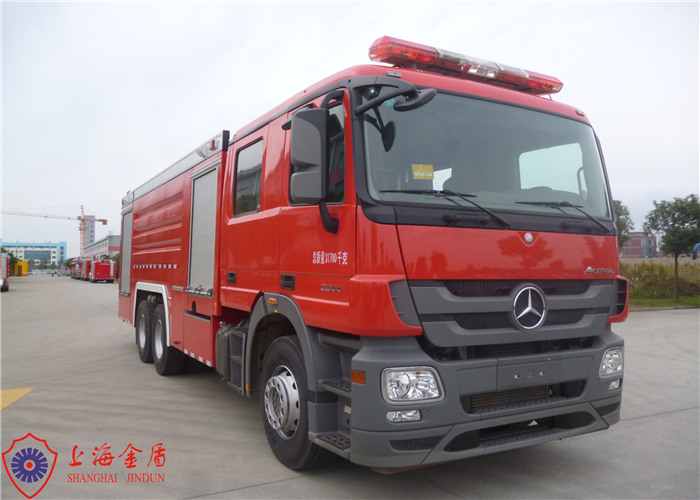

The PM160 modern foam fire truck is modified form Mercedes-Benz
Actros3344 chassis, 6x4 drive, max power 325kw. The foam fire
vehicle equipped with Benz engine, Hale fire pump and Elkhart fire
monitor. The flow of fire pump and fire monitor are 90L/s and 80L/s
respectively. The liquid tank capacity is 12000kg water and 4000kg
foam.
Vehicle
| Dimension (L×W×H) | 10135×2500×3500mm |
| Gross weight | 31800kg |
| Complete vehicle shipping mass | 15600kg |
| Seat (inc. driver) | 6 |
| Max. power | 325kw |
Chassis
| Manufacturer | Diamler |
| Model | Actros3344 |
| Drive type | 6x4 |
| Cab | Flattop double row, overturning type |
| Crew department | 4 air breathing apparatus fixed mount in the seats |
| Wheelbase | 4500+1350mm |
| Max. speed | 100km/h |
| Min. turning diameter | <25m |
| Approach angle | 16° |
| Departure angle | 11° |
| Engine type | V type six-cylinder, inter-cooling, electronic unit pump diesel
engine |
| Model | OM501LA.IV/4 |
| Max. power | 325kw |
| Max. torque | 2100N•m |
| Emission standard | China IV/Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual-automatic |
Fire pump
| Manufacturer | Hale |
| Model | RSD |
| Flow | 90L/s |
| Pressure | 1.0MPa |
| Water diversion | Electric primer pump |
| Max. vacuum degree | ≥85 kPa |
| Priming time | ≤80s |
| Auto ring pump foam | PH48x2 |
| Type | Manual |
| Mixing ratio | 3%, 6% |
Pipeline
| Outlet pipeline | 2×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet | 1×DN150 suction coupling 1×DN150 pneumatic butterfly valve |
| Monitor pipeline | 1×DN125 monitor pipeline 1×DN125 butterfly valve |
| Residual water outlet | Water cock |
| Cooling water pipeline | The PTO equipped with a cooling water pipeline connected with the
in-outlet pipeline. |
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for
firefighting trucks products which nearby Pudong International
Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal
with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management
team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have
ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance
deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
