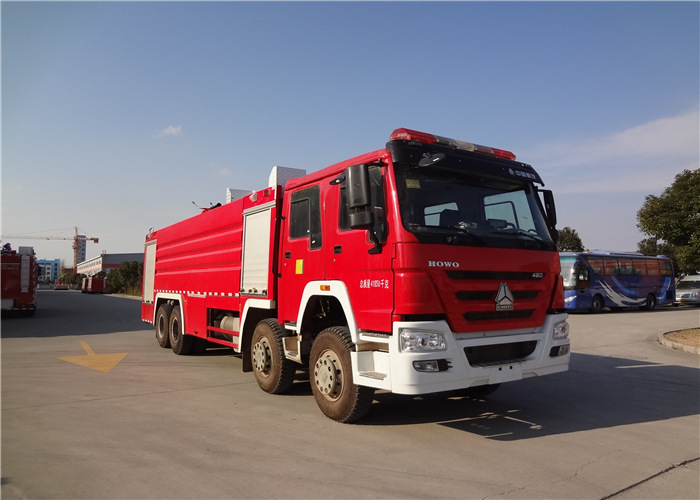

8X4 Drive Six Seats HOWO Chassis Foam Firefighting Truck Huge
Capacity Darley Pump
Fire truck (also called fire fighting vehicle , Fire engine , Fire
fighting apparatus , Fire service truck , Fire and rescue truck ,
fire truck , fire fight truck , Foam fire tank truck , Fire
extinguishing foam tanker ) is a vehicle designed primarily for
fire fighting operation to extinguish fire efficiently to prevent
fire spread , reducing the loss caused by fire maximumly .
Vehicle details:
1. Dimension ( L×W×H): 11775×2500×3700 mm.
2. G.V.W : 41980 KG.
3. Complete Vehicle weight: 18000 KG.
4. Seats ( inc. driver) : 6 seats.
5. Max power: 309 KW.
| Engine type | Inline six-cylinder, water inter-cooling, direct injection diesel
engine |
| Model | D12.42—40 |
| Max. power | 309kw |
| Max. torque | 1820N•m |
| Emission standard | China IV |
| Clutch | Pull, dry |
| Gearbox model | Manual, 10 forward gear |
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5437V4667D5 |
| Drive type | 8x4 |
| Cab type | Flattop metal forward type |
| Wheelbase | 1800+4600+1350mm |
| Max. speed | 95km/h |
| Min. turning diameter | ＜30m |
| Approach angle | 16° |
| Departure angle | 13° |
| |
Cab
| Structure | Double row, four-door, lengthen cab |
| Seat | 2+4 |
| Equipment | Except the original equipments. There is a storage box with cover
under the seat, embedded 4x9L air breathing apparatus fixed mount
in the seats |
Liquid tank
| Capacity | Water: 17000kg Foam: 7000kg |
| Material | 304 high quality corrosion resistant plate |
| Structure | Total side girder |
| Device | 2 ingate 1 overflow device 2 liquid level sensor 2 DN50 drain outlet with valve 4 filling pipe end Conform to rule GA39.4-92 |
Side girder
Features: made of welding high quality profiled steels, two
longitudinal beams through a plurality of beam intensity bearing
joint of high strength bolt connection. The side beam is installed,
use girder structure, to ensure that the original car beam of
uniform stress, improve the service life of the girder, and reduce
deformation caused by components twisted.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's the delivery time?
A: 1) 20 days delivery upon receipt of advance deposit if we have
ready in stock for normal standard model.
2) ISUZU & Chinese brand chassis 3 months upon receipt of advance
deposit.
3) European brand chassis 9 months upon receipt of advance deposit.
Any other questions, please do not hesitate to contact with us.
