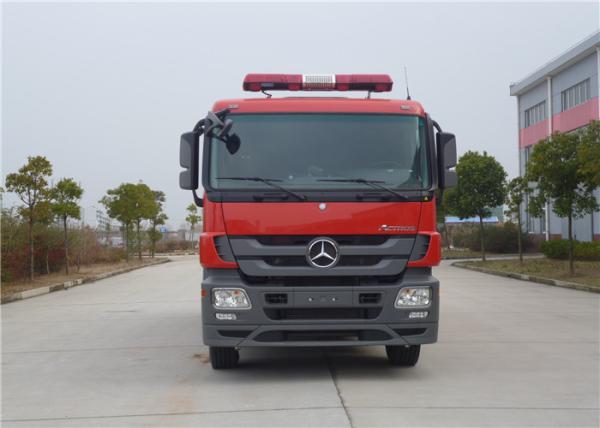

Benz Chassis 265KW Commercial Fire Trucks 6x4 Water Foam Tanker
Fire Truck
Technical specification for Water Foam Tanker Fire Truck
Vehicle
| Dimension (L×W×H) | 9720×2500×3700mm |
| Gross weight | 28000kg |
| Complete vehicle shipping mass | 15350kg |
| Seat (inc. driver) | 2 |
| Max. power | 265kw |
Chassis
| Manufacturer | Daimler |
| Model | Actros3336 |
| Drive type | 6x4 |
| Cab | Manual operation hydraulic forward turnover |
| Wheelbase | 4500+1350mm |
| Max. total mass | 18000kg |
| Max. speed | 95km/h |
| Min. turning diameter | <21m |
| Approach angle | 17° |
| Departure angle | 13° |
Liquid tank
| Capacity | Water: 6500kg Foam: 6000kg |
| Material | 304 high quality corrosion resistant plate |
| Structure | Total side girder |
| Pressure | 1.0MPa |
| Device | 2 manhole 1 overflow device 2 liquid level sensor 2 DN50 drain outlet with valve 4 filling pipe end Conform to rule GA39.4-92 |
Pipeline
| Outlet pipeline | 2×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet | 1×DN150 suction coupling 1×DN150 pneumatic butterfly valve |
| Monitor pipeline | 1×DN125 monitor pipeline 1×DN125 butterfly valve |
| Residual water outlet | Water cock |
| Pump drive system | NMV200 |
| Drive shaft | High balance precision |
Fire monitor
| Model | POK, PLC6000 |
| Position | Rear roof |
| Flow | 80L/s |
| Pressure | 1.0MPa |
| Range | water≥75m ,foam≥70m |
| Rotation angle | Level ≥270° Max. elevation angle ≥+45° Max. depression angle ≥-7° |
Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate.
Structure: adopt the gas springs plus shutter fasten, safe and
reliable, each petal plate bearing ≥150Kg.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
