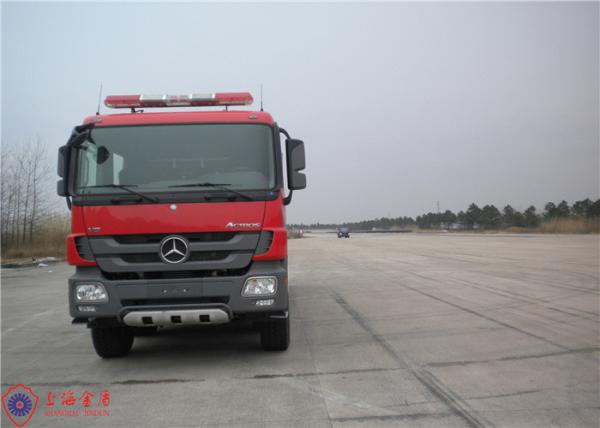

8X4 drive six seats Mercedes chassis Foam firefighting truck
vehicle huge capacity
PM200 foam fire fighting truck use Mercedes Benz original chassis
Actros4160 which is huge capacity 8x4 drive with two row cab. Max
speed 100kg/h. The foam tanker fire vehicle equipped with imported
fire pump and remote control fire monitor. It could load 20000 kg
fire extinguishant.
| Cab | double row, overturning type |
| Wheelbase | 1700+4300+1350mm |
| Max. speed | 100km/h |
| Min. turning diameter | <27m |
| Approach angle | 29° |
| Departure angle | 11° |
| Engine type | V type eight-cylinder, pressure combustion, four-stroke,
inter-cooling. |
| Model | OM502LA.IV/3 |
| Max. power | 440kw |
| Max. torque | 2800N•m |
| Emission standard | China IV/Euro IV |
| Clutch | Monolithic, dry |
Vehicle
| Dimension (L×W×H) | 11425×2500×3860mm |
| Gross weight | 39250kg |
| Complete vehicle shipping mass | 19100kg |
| Seat (inc. driver) | 6 |
| Max. power | 440kw |
Chassis
| Manufacturer | Diamler |
| Model | Actros4160 |
| Drive type | 8x4 |
| |
| Gearbox model | Manual, 16 forward gear |
| Tyre | 4x 385/65R22.5
8x 315/80R22.5 |
Cab
| Structure | Double row |
| Seat | 2+4 |
| Equipment | Except the original equipments. There is a storage box with cover
under the seat, embedded 4x9L air breathing apparatus fixed mount
in the seats |
Side girder
Features: made of welding high quality profiled steels, two
longitudinal beams through a plurality of beam intensity bearing
joint of high strength bolt connection. The side beam is installed,
use girder structure, to ensure that the original car beam of
uniform stress, improve the service life of the girder, and reduce
deformation caused by components twisted.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's your main product?
A: Our main product include : water & foam tank trucks, CAFS fire
trucks, chemical fire trucks, emergency rescue vehicles, lighting
trucks, aerial ladder and platform trucks, airport fire trucks,
water tower fire trucks and other general fire trucks. The products
have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
