139KW 3500 Kg Water & Foam Tanker Fire Trucks With Cooling Water
Pipeline Max Torque 510N/M

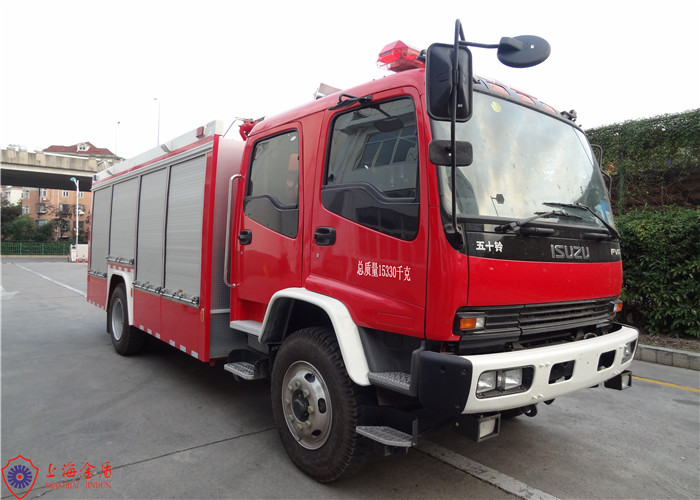

JDX5100GXFPM35/B foam fire truck adopts QL11009KARY ISUZU chassis,
USA HALE AP32 fire pump, USA AKRON 3430 fire monitor and other
fire-fighting equipment. The vehicle has the features of a good
structure and reasonable layout, easy operation and maintenance. It
is usually used by public security fire brigades in large and
medium cities, petrochemical companies and airports and other
professional fire brigade.
1. Main performance parameters:
| The whole vehicle | |
| Dimensions | 6870X2240X3040 mm |
| Full load permissible weight | 10000 Kg |
| Vehicle total weight | 6125 kg |
| Fire-extinguishing agents | water + Foam: 3500kg |
| Number of passengers | 5,include driver |
| Max. Power | 139kw/189hp |
| Chssis | |
| Brand | ISUZU chassis |
| Model | QL11009KARY |
| Drive Type | 4x2 |
| Cab | double cabin (1 + 1 + 3), the rear seat backrests fit with three
fixtures for putting Self Contained Breathing Apparatus. |
| Wheelbase | 3815mm |
| Chassis weight | 2970Kg |
| Max. permissible load | 7030Kg |
| Maximum speed | 110Km/h |
| Min. turning diameter | ＜15.2m |
| Engine | Inline four-cylinder, water-cooled, electronically controlled
two-stage, high-pressure common-rail, turbocharged, intercooled,
diesel engine electronic control |
| Type | 4HK1-TCG40 |
| Max. power | 139Kw/ 2600r/min |
| Max. torque | 510N.M/1600rpm |
| Emission standard | China Ⅳ |
| Clutch | Single, dry, diaphragm spring, oil and gas booster |
| Gearbox | MLD-6Q |
Fire Pump
- Manufacturer: USA HALE Company
- Mode: AP32
- Pressure/flow rate: 1.0MPa 32L/s
- Foam proportioner (control panel picture on the right):
- Manufacturer: USA W.S. Darley Co.
- Model: FSB60-C
- Type: Automatic foam proportioner
- Foam proportion: 0.5%-6%
- Foam liquid flow rate: 5.5-227(L/min)
Extinguishing system
1. Water inlet: A Φ100mm suction connection, at the rear of vehicle
body. An inlet with Φ100mm manual butterfly connects with the water
tank
2. Water injection: a Φ80mm tank water injection inlet at each side
of vehicle body.
3. A pump with a DN40 manual ball valve behind the tank connects
with water tank injection inlet.
4. Water outlet: A outlet with Φ80mm ball valve on each side of
pump station. And a DN80 cannon pipe
5.Residual water drainage pipeline: To protect the pump and each
ball valve, mounted with residual water drainage valve.
6. Cooling water pipeline: to protect normal operation of the PTO,
the pipeline is mounted with additional cooling devices.
