Sinotruk Six Seats Water Tanker Fire Truck Pump Flow 60L/S Aluminum
Water Tank 5684L

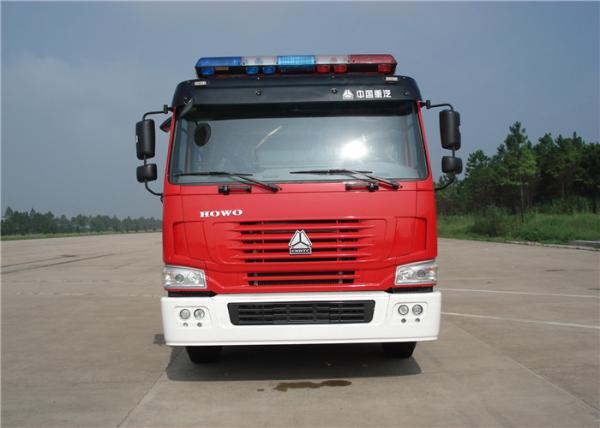

The SG60 six seats water tanker fire truck is adapted from Sinotruk
Howo chassis, 4x2 driving with lengthen cabin. Rated power of the
original engine is 206kw. The water tanker fire vehicle equipped
with HALE pump which flow 60L/s and local manul control fire
monitor, carries 5684kg water. It's suitable for public security
fire brigade, petrochemical enterprise, port, dock and other
professional fire bridage in large and medium-sized city.
Chassis
| Manufacturer | Sino howo |
| Model | ZZ5207M4617D5 |
| Drive type | 4x2 |
| Cab | Flattop four-door lengthen |
| Wheelbase | 4600mm |
| Chassis net weight | 7230kg |
| Max. load | 20490Kg |
| Max. speed | 90km/h |
| Min. turning diameter | ＜18.6m |
| Engine type | Inline six-cylinder, four-stroke, water-cooling, inter-cooling
engine |
| Model | D10.28-40 |
| Max. power | 206Kw/1900r/min |
| Emission standard | China IV/Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual 9JS119 |
| Tyre | 12.00—20 |
Fire pump
| PUMP Manufacturer | HALE |
| Model | 50FB-U60-U ordinary pressure fire pump |
| Pressure/ Flow | 1.0MPa/60L/S |
| Primer type | Electric primer pump |
| Max. vacuum degree | ＞85 kPa |
| Priming time | ≤50s |
| Priming depth | 7 m |
Pipeline
| Outlet pipeline | 4×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet | 1×DN150 outside inlet 1×DN150 valve |
| Monitor pipeline | 1×DN100 monitor pipeline 1×DN100 butterfly valve |
| Residual water outlet | Water cock |
| Cooling water pipeline | The PTO equipped with a cooling water pipeline connected with the
in-outlet pipeline. |
Pump drive system
| Model | YTQ600F sandwich type |
| Manufacturer | YANGZHONG |
| Transmission shaft | High balance precision |
Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate.
Structure: adopt the gas springs plus shutter fasten, safe and
reliable, each petal plate bearing ≥150Kg.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's your main product?
A: Our main product include : water & foam tank trucks, CAFS fire
trucks, chemical fire trucks, emergency rescue vehicles, lighting
trucks, aerial ladder and platform trucks, airport fire trucks,
water tower fire trucks and other general fire trucks. The products
have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
