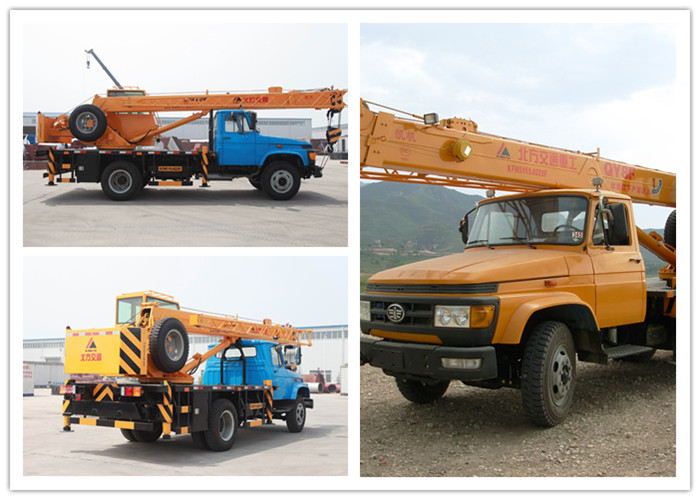

    Kaifan 8t 101kw Hydraulic Truck Bed Crane Wind Force Lower Than 6 Degree

    Ask Lasest Price
    Brand Name : Jiefang
    Model Number : KFM5115JQZ8F
    Certification : IQNET,ISO
    Price : USD
    Payment Terms : T/T
    Supply Ability : 300/year
    Delivery Time : 3months
    • Product Details
    • Company Profile

    Kaifan 8t 101kw Hydraulic Truck Bed Crane Wind Force Lower Than 6 Degree

    KaiFan 8T Electric Truck Bed Crane 2500r/Min KFM5115JQZ8F – QY8F basic boom 7.95M


    Main Parameters

    ItemsUnitValue
    Working Performance ParametersMax. Rated lifting weightkg8000
    Max. Lifting force of the basic boomkn.m245
    Max. Lifting force of the longest main boomkn.m108
    Max. Height of the basic boomm7.95
    Max. Height of the main boomm17.95
    Max. Height of the vice boomm23.7
    Max. Speed of the single ropem/min120
    Working SpeedExtension time of the lift booms30
    Lifting time of the lift booms25
    Turning speedr/min0~2.5
    Traveling ParametersMax. Traveling speedkm/h74
    Max. Grade ability%30
    Min. Turning radiusm8.2
    Min. Ground clearancem0.265
    The whole weightkg11400

    Dimension Parameters

    External dimension(length×width×height)mm8480×2400×3110
    Vertical span of outriggerm3.86
    Horizontal span of outriggerm4.2
    Length of main boomm7~17.25
    Length of vice boomm6
    Elevation of main boom°-2~75
    ChassisModelCA5115JQZ
    Engine modelXICHAI CA4DF3-13E3
    Rated power/rotate speedkw/(r/min)101/2500
    Max. Torque/rotate speedn.m/(r/min)450/1400
    Axle basemm4050

    Working Condition

    1,Altitude: 0-4500m

    2,Temperature: -25℃--+45℃

    3,Allowed working condition: solid, stable land, the vehicle should be horizontal

    4,Wind force: ≤6 degree
