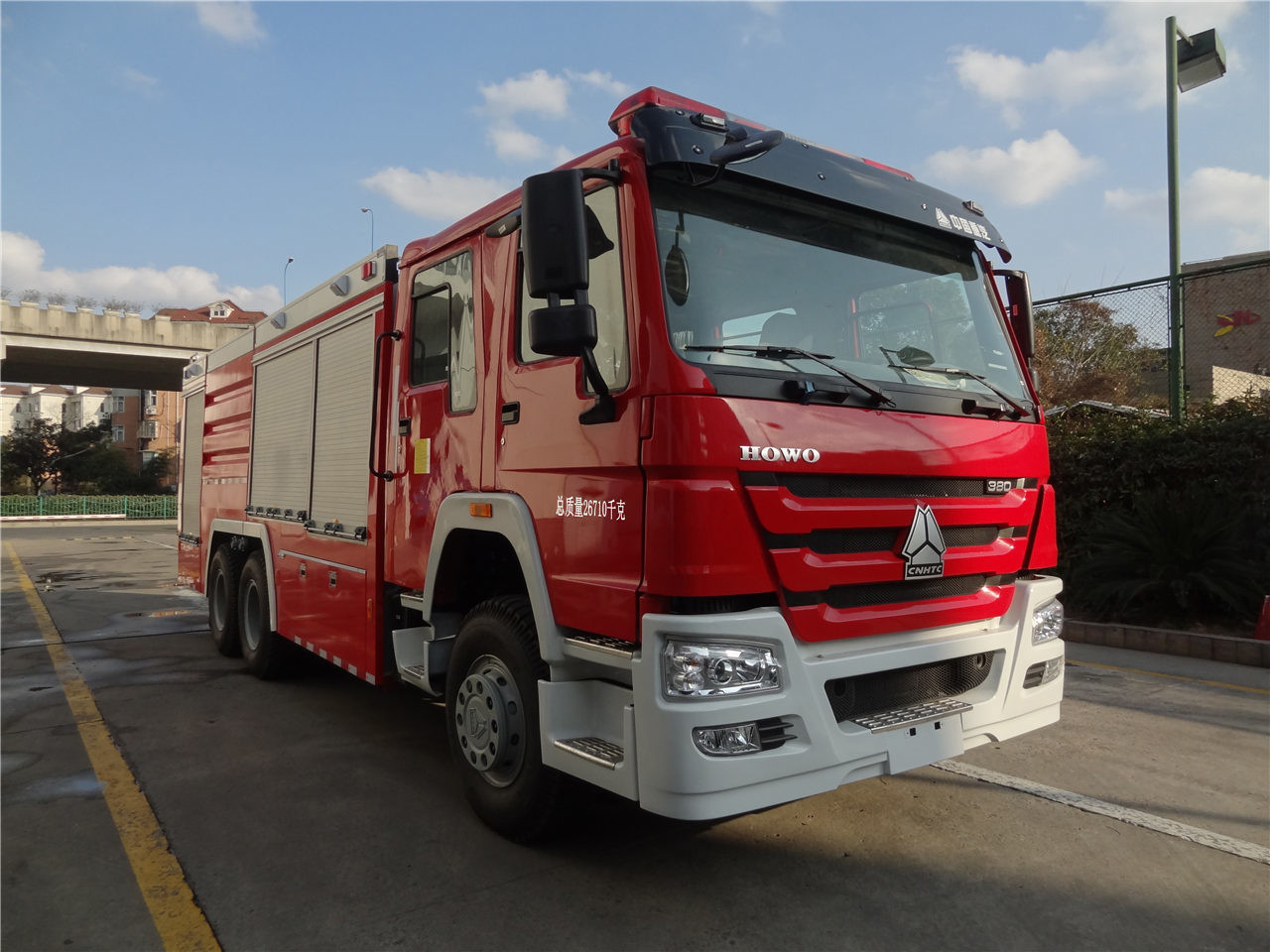

Multi-function 6x4 Drive Dry Power and Foam Fire Truck 64L/s Roof
Monitor
The GP100 Dry powder and foam fire truck is our multi-function
combined fire truck which adopts our new technologies, new
processes, new materials, independent research and development,
using Sinotruk Howo ZZ5347V4347D5 chassis, Shanghai CB10 / 100-XZ
fire pump, 500kg dry powder system and the use of Chinese reducing
valves, and PL64 fire monitor. It is suitable for large and
medium-sized cities public security fire brigade, petrochemical
companies, ports, wharfs and other professional fire brigades.
Vehicle
| G.V.W | 34000 kg |
| chassis weight | 9400 kg |
| Max speed | 90km/h |
| Seat (inc. driver) | 6 |
| Max. power | 283kw/380Hp |
Chassis
| Brand | Sino truck |
| Drive type | 6x4 |
| Cab | double cabin with four doors |
| Wheelbase | 4325+1350mm |
| Max. speed | 90km/h |
| Min. turning diameter | 18.6m |
| Engine type | inline six-cylinder, four-stroke, water cooled, turbocharged and
intercooled engine |
| Model | OM502LA.IV/3 |
| Max. power | 283kw/380Hp |
| Clutch | Monolithic, dry |
| Gearbox model | Manual, |
Cab
| Structure | Rotatable type |
| Seat | 1+1+4 |
| Equipment | Except the original equipments. There is a storage box with cover
under the seat, embedded air breathing apparatus fixed mount in the
seats |
Fire pump
| Manufacturer | Chinese brand |
| Model | CB10/100 |
| Flow | 100L/s |
| Pressure | 1.0MPa |
| Water diversion | Piston primer pump |
| Max. vacuum degree | ≥85 kPa |
| Priming time | ≤80s |
| Foam proportioner | PH64x3 |
| Type | Manual |
| Mixing ratio | 3%, 6% |
Fire monitor
| Model | PL64 |
| Position | Rear roof |
| Flow | 64L/s |
| Pressure | 0.8 MPa |
| Range | water≥70m ,foam≥60m |
| Rotation angle | horizontal: 360°, Pitching: -15° to 80° |
| Operation type | Manual |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's the delivery time?
A: 1) 20 days delivery upon receipt of advance deposit if we have
ready in stock for normal standard model.
2) ISUZU & Chinese brand chassis 3 months upon receipt of advance
deposit.
3) European brand chassis 9 months upon receipt of advance deposit.
Any other questions, please do not hesitate to contact with us.
