206kw Manul Transmission Water and Foam Combined Commercial Fire
Trucks

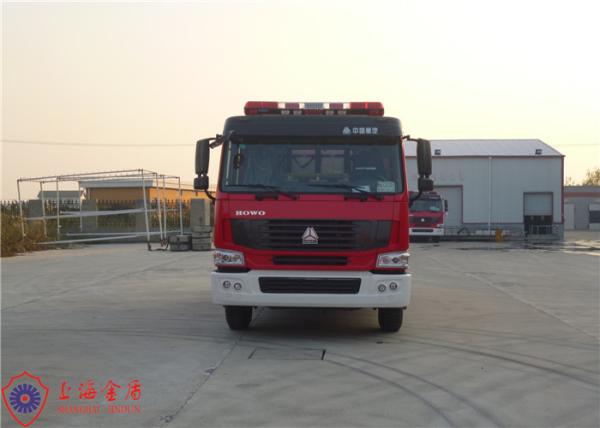

The commercial fire truck is modified from Sinotruk Howo
ZZ5207M4617D5 chassis. 4x2 drive. Large space two rows cabin with
six seats. Both fire pump and fire monitor are Chinese brand which
price is more competitive. Flow rate of pump is 60L/s at 10 bar.
Flow rate of fire monitor is 48L/s at 10 bar.
The commercial fire truck equipped with large capacity fire
extinguishing and with fast speed, making it an essential
firefighting vehicle for petrochemical enterprises, oil terminals,
oil depots, airports, and fire brigades in large and medium-sized
cities.
Main spec of commercial fire truck
| Dimensions (L×W×H) | 8475×2500×3400 (mm) |
| Gross weight | 19800 (kg) |
| Complete vehicle shipping mass | 11600 (kg) |
| Seat (inc. driver) | 2+4 |
| Max. power | 206kw |
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5207M4617D5 |
| Drive type | 4x2 |
| Cab | Four door lengthen cab |
| Wheelbase | 4600mm |
| Max. speed | 100km/h |
| Min. turning diameter | ≤20m |
| Approach angle | 16° |
| Departure angle | 14° |
| Engine type | Pressure combustion, In-line six-cylinder, water cooling,
inter-cooling, direct injection diesel engine |
| Model | D10.28-40 |
| Max. torque | 1190N.M |
| Emission standard | China IV |
| Clutch | pull type diaphragm |
| Gearbox | Manual, 10 forward gear |
Fire pump used on the commercial fire truck
| Manufacturer | SHANGHAI XIONGZHEN |
| Model | CB10/60-XZ |
| Pressure/ Flow | 1.0MPa/60L/s |
| Primer type | Piston primer pump |
| Max. vacuum degree | ≥85 kPa |
| Priming time | ≤50s |
| Air foam proportioner | PH48, manual, mixing ratio:3%, 6% |
Tanker
| Capacity | Water: 6000L Foam: 2000L |
| Material | High quality stainless steel 304 |
| Structure | Total side girder structure |
Device
| 2 ingate
1 overflow device
2 liquid level sensor
2 DN40 drain outlet with valve
4 DN80 filling pipe end |
| Technical requirements | Conform to rule GA39.4-92 |
Fire monitor on roof of commercial fire truck
| Model | PL48 |
| Position | At the top of rear vehicle |
| Flow | 1.0MPa/48L/s |
| Range | water≥60m ,foam≥50m |
| Rotation angle | Level≥270°
Max. elevation angle≥+45°
Max. depression angle≥-7° |
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for
firefighting trucks products which nearby Pudong International
Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal
with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management
team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have
ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance
deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
