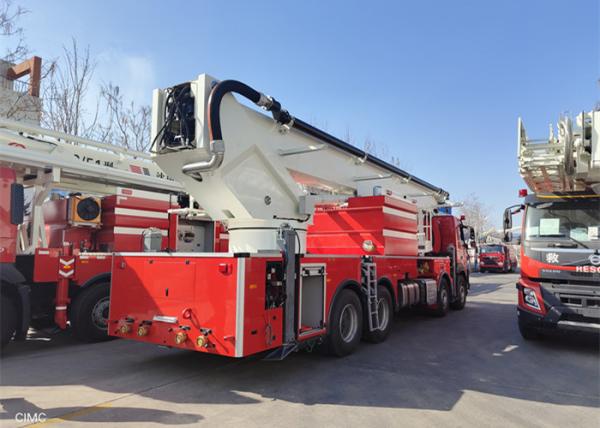

    44m Working Height 320kw Aerial Hydraulic Platform Fire Truck with Work Cage

    Ask Lasest Price
    Brand Name : Jindun
    Model Number : DG44
    Certification : ISO9001/CCC
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 150 days
    Supply Ability : 400 units/year
    • Product Details
    • Company Profile

    44m Working Height 320kw Aerial Hydraulic Platform Fire Truck with Work Cage

    44m Working Height 320kw Aerial Hydraulic Platform Fire Truck with Work Cage


    Main specification

    Chassis


    ManufacturerMercedes Benz
    ModelActros3344
    Driving6×4
    CabinSingle cab
    Wheel base4500+1350 (mm)
    Net weight9230Kg
    Max. loading23700Kg
    Max. running speed90Km/h
    Min. turning diameter<22.3m
    Engine typeV type, 6 cylinder in line turbo, middle cool engine
    ModelMercedes OM501 LA
    Max. engine power320Kw/ 1800r/min
    Maximum torque2100N.M/1080rpm
    Emission standardEuro V
    ClutchMonolithic, Dry
    Transmission

    Mercedes G240-16

    fully synchronized

    Full power PTO


    NMV200(N56)i=1.48(speedup), Full power

    PTO of transmission


    MB-NA121-1b(N04)i=1.03/1.24 (speed up)

    Boom Structure


    Main boom + four telescopic booms + one folding boom, welded with HG70 high-strength steel
    Max. working height44m
    Max. working range21m
    Main boom action angle-3°~83°
    Folding boom action angle0°~180°
    Turntable slewingInfinite rotation 360°
    Rated Pump flow70L/s@1.7Mpa
    Boom extending time≤140s
    Outrigger extending time≤35s
    Hydraulic system pressure21MPa
    Max. wind velocity12.5m/s
    Outrigger longitudinal and transverse5600×5300mm

    Onboard equipment

    ItemModelNo.Remark
    1Heterotype CouplingDN802Rotate and insert
    2Heterotype CouplingDN652Rotate and insert
    3CouplingDN80/654insert
    4Triple head distributor1
    5Fire hoseDN80-16型4insert
    6Hose bandage4/
    7Hose bridge1/
    8Hose rope2/
    9Hydrant wrench2/
    10Hose coupling wrenchDN80,DN652
    11Lap belt4
    12Outrigger crosser4



    Company Profile:

    Jindun as a member of China Fire Protection Association, was certified by TUV system, NFPA and CCCF. By excellent products and innovative technolody, we are engaged in developing a "safe, livable and rich society."


    The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
