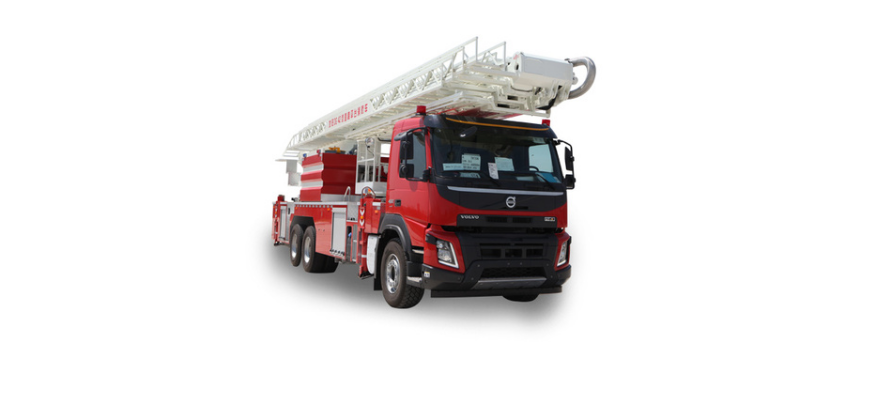

    Volvo Chassis 44m Working Height Aerial Ladder Fire Truck with 7000kg Tanker

    Ask Lasest Price
    Brand Name : Jindun
    Model Number : DG44
    Certification : ISO9001/CCC
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 150 days
    Supply Ability : 90 units / year
    • Product Details
    • Company Profile

    Volvo Chassis 44m Working Height Aerial Ladder Fire Truck with 7000kg Tanker

    Volvo Chassis 44m Working Height Aerial Ladder Fire Truck with 7000kg Tanker


    Product introduction:

    DG44 type ascending platform fire truck, adopts Swedish Volvo chassis, adopts full rotation, straight telescopic arm and folding arm structure, the effective cooperation of straight telescopic arm and folding arm, can send the working platform to some limited space for various aerial works, greatly expanding the working range of the truck. It adopts electric control and hydraulic drive, which makes it easy be operable, flexible, safe and reliable, practical and so on. It is suitable for fire fighting and rescue of personnel and materials in high-rise buildings of large and medium cities and factories and mines.


    Product Parameter:

    Boom Structure


    Main boom + four telescopic booms + one folding boom, welded with HG70 high-strength steel
    Max. working height44m
    Max. working range21m
    Main boom action angle-3°~83°
    Folding boom action angle0°~180°
    Turntable slewingInfinite rotation 360°
    Rated Pump flow70L/s@1.7Mpa
    Boom extending time≤140s
    Outrigger extending time≤35s
    Hydraulic system pressure21MPa
    Max. wind velocity12.5m/s
    Outrigger longitudinal and transverse5600×5300mm
    Fire fighting system

    Fire-fighting performance data


    Range(water/ foam)≥70/60m
    Foam proportioner6%(manual adjustment)
    Liquid tank
    ManufacturerShanghai Jindun
    CapacityWater: 5000kg Foam: 2000kg
    MaterialStainless steel 304
    StructureShock-reducing rubber resilient mounting, set vertical and horizontal anti swing plate on subframe
    Device

    2 manhole, with fast locking and opening device

    2 fluid level gauge

    2 drain outlet, with stainless steel ball valve

    1 inner filling pipe end

    4 outer filling pipe end

    PipelineWater outlet

    4×DN80 ball value coupling


    Suction inlet1×DN150 hermaphroditic coupling with lid cover(left side)
    Water supply

    2×DN80 ball value coupling


    Liquid inlet

    1×DN50 manual ball valve(left side)


    Water outlet out of the platform1×DN65 ball value coupling(in front of platform)
    Coupling type: quick coupling



    Company Profile:

    Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”


    The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
