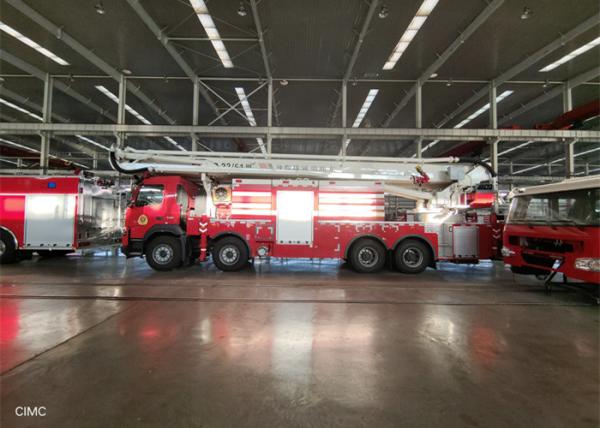

900rpm Water Tower Fire Truck Dual Boom 8X4 Drive Euro V Engine Chassis

900rpm Engine Power Dual Boom Water Tower Fire Truck 8X4 Drive Euro V Engine Chassis

water supply system

The waterway shall be completely made of non-corrosive material. the water line leads through the center post in the turntable up into the working cage where the water monitor is mounted. The telescopic water pipe shall be provided on the side of booms properly supported and protected with flexible pressure hose on the boom knuckles.

A Telescopic water pipe shall be provided on the side of the booms. Moving sections of this pipe shall be externally used for long life.

The water line shall be protected from possible over pressure by means of relief valves mounted in pump house

Water monitor shall be connected to the piping system and shall be mounted on top of boom.

Boom action angle		Down Telescopic boom 0°——88° Up Telescopic boom and down telescopic boom 0°——164°
Rotation range		360°infinite rotation
Outrigger extending time		≤40s
Boom raised to rated height and rotation 90°			≤270s
Fire water way system
tank	material:stainless steel		water:5000 liter			foam:1000 liter
	thick:bottom 4mm,others 3mm
	transverse and longitudinal baffles in tank
	Water leak pipe with cover :DN125
	vent valve for foam tank
	electric liquid gauge for water and foam tank
	Flexible mounting between tank and subframe
	Anti-slip stainless steel plate on top of tank
	rustproof painting for internal surface of tank
	Each water and foam tank has 1 man-hole, internal diameterφ440 Quick lock/on, auto pressure release during more than 2 kg, green lid for water tank, yellow lid for foam tank
pump	American HALE company, 8FC single stage centrifugal pump flow:170 L/S @ 1.0 Mpa 70 L/S @ 1.5 Mpa intake flange:DN200,outtake flange:DN150
Vacuum pump	ESP-24V electric slip sheet vacuum pump 2 pieces( 24V) Vacuum capacity≥85kPa；suction depth≥７m；water drawing time less than50s.
mixer	American DARLEY FSB240-C automatically foam proportion mixer,mixer ratio 0.5-10%
Fire monitor	USA Akron Brass water/foam electronic control monitor or equivalent Monitor body made by SHENYANG JIETONG Flow adjustment: 950 – 4800 L/min: working pressure 0.55Mpa. Discharge distance:Water ≥ 60m, Foam ≥ 55m (variable with flow rate) Swivel angle ±45 degrees, elevating angles: +90 degrees to – 45 degrees Wireless control distance: ≥ 100 m
Foam Monitor head	self made foam monitor head
Water way control	Control mode: electropneumatic valve control
	control panel position: left side of vehicle
Monitor protection	water spray curtain system to protect monitor, electric control
Fire plumbing	Down part:stainless pipe+aluminium pipe
	Upper :telescopic water pipe:aluminium alloy seamless tube
Water coupling	coupling			model	valve
	External Water Supply			4XDN80	Manual ball valve
	External water suction			2XDN150	with lid cover
	Tank Internal Suction			1XDN200	Pneumatic butterfly valve
	Tank water supply			1XDN65	Pneumatic ball valve
	Water outlet			4XDN80	Manual ball valve
	Upper Monitor inlet			1XDN125	Pneumatic butterfly valve
	Water supply from end of vehicle			4XDN80	Manual ball valve with cover
	Water supply for second boom			2XDN80	Manual ball valve with cover
	Water Tank Drainage			1XDN65	Manual ball valve with interface
	External Foam Suction			1XDN50	Manual ball valve with cover
	External Foam filling			1XDN65	Manual ball valve with cover
	Foam Tank Drainage			1XDN65	Manual ball valve with interface
	Coupling type:quick coupling or slow coupling option

The control station shall be fitted with comfortable seat.

control panels be fitted with following warning, indication and control devices, and be marked by clear symbols for easy recognition.

Visual indication for ground pressure of the outriggers

Visual indication for the center position of the booms

Starting and stopping of chassis engine

Joystick control levers for each movement

Emergency stop button
