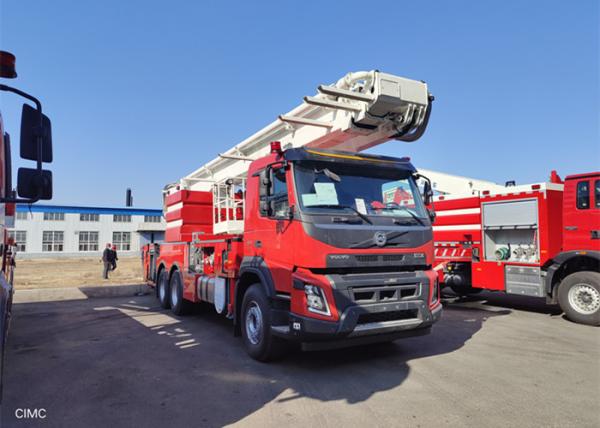

6x4 Drive 32 Meter Aerial ladder Fire Truck Carrying 2000L Water 1500L Foam

The unique computer control system makes the arm frame easy to operate. The vehicle adopts TFT touch 10.4 inch color LCD Chinese display, which can not only display the working curve of the boom, but also display the working height, amplitude changing angle, working radius and other relevant data. And can be monitored by touch screen.

The rational use of high-power pumps, water cannons and water tanks and foam tanks makes the vehicle have the function of high-power foam fire trucks.

Vehicle

Steering gear

2.8.1 Model: right ZF8098

2.8.2 Form: hydraulic power

Steering front axle

2.9.1 Model:VR4/01D-7.5

2.9.2 I-shaped structure, right steering axle, friction plate 160mm, brake chamber 30mm

2.9.3 rated load (T): 7.5

Middle axle

2.10.1 Model:HD7/016DGS-13

2.10.2 Type: Through type, hyperbolic type, wheel side deceleration, wheel-to-wheel differential, inter-axle differential, bipolar reduction drive axle, friction plate 220mm, center hole positioning, brake air chamber 30/30.

2.10.3 Allowable load bearing (t):13

2.10.4 Main transmission ratio:4.769

Fuel tank

400L iron tank

Suspension system

2.15.1 Front axle: multi leaf spring, hydraulic shock absorber and stabilizer bar

2.15.2 Rear axle: balanced suspension, 13 leaf springs (each 20 mm thick), with side stop plate
