4x2 Drive Six Seats Isuzu Chassis Foam Firefighting Truck Vehicle Pump 60L/s

Shanghai Jindun special vehicle Equipment Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 4x2 Drive Six Seats Isuzu Chassis Foam Firefighting Truck Vehicle Pump 60L/s from wholesalers

    Buy cheap 4x2 Drive Six Seats Isuzu Chassis Foam Firefighting Truck Vehicle Pump 60L/s from wholesalers
    • Buy cheap 4x2 Drive Six Seats Isuzu Chassis Foam Firefighting Truck Vehicle Pump 60L/s from wholesalers
    • Buy cheap 4x2 Drive Six Seats Isuzu Chassis Foam Firefighting Truck Vehicle Pump 60L/s from wholesalers

    4x2 Drive Six Seats Isuzu Chassis Foam Firefighting Truck Vehicle Pump 60L/s

    Ask Lasest Price
    Brand Name : Jindun
    Model Number : PM60W
    Certification : ISO9001/CCC/TUV
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 units/year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

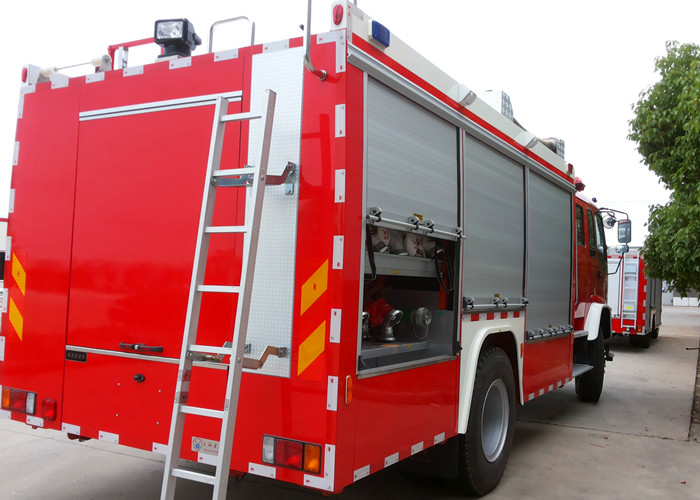

    4x2 Drive Six Seats Isuzu Chassis Foam Firefighting Truck Vehicle Pump 60L/s

    4x2 Drive Six Seats Isuzu Chassis Foam Firefighting Truck Vehicle Pump 60L/s


    Fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .


    Fire Vehicle:

    Dimension (L×W×H)8145×2500×3330 (mm)
    Gross Vehicle weight16150 (kg)
    Kerb weight9600kg
    Engine power177kw/241HP
    Extinguishing capacityWater:5500L Foam: 550L
    CabinDouble cabin, 2+4 persons. the rear cabin backrests fitted with four fixtures to put Self Contained Breathing Apparatus


    Chassis:

    BrandISUZU
    Drive4x2 drive
    ModelQL1180XMFRY
    Drive typeLeft hand drive
    Cabin2+4 (incl. driver), double cabins, four doors
    Wheel base4500 mm
    Track front1960mm
    Track rear1855 mm
    Power177Kw/241HP
    Chassis net weight5500kg
    Max. allowable Loading18000kg
    Maximum speed105Km/h
    Minimum turning radius≤7.8m

    EngineInline six-cylinder, four-stroke, water-cooled,high pressure common rail diesel engine
    Displacement7790mL
    Model6HK1-TCL
    Power177Kw/ 2400r/min
    Max. Torque706N.m/1450rpm
    Emission standardEURO 5
    Clutch45-65mm. Monolithic dry clutch
    Diameter380 mm
    Pedal free stroke45-65 mm
    Biggest angle that can pass when full load (Max. Gradient)≥ 30%
    GearboxMLD-6Q Six speeds manual gear box
    Speed ratio of each gear6.720/4.244/2.580/1.540/1.000/0.763,R6.823
    Tire size11.00-20 16PR
    Approaching/departure angle15°/17°
    Steering gear modelZDZ-100C
    Steering typeCircular ball, Steering wheel
    Rear axleR130, Integral, main Reduction ratio5.571
    Front axleF063, I-section
    Braking systemManual, spring energy storage, acting on the rear wheel
    Emergency braking typeCombined with driving braking
    Type of auxiliary braking systemExhaust brake
    Control type of ABS system4S / 4M (4 channels, 4 sensors, 4 regulators)
    ABS system controller modelAPG3550500H1
    Front suspension typeLeaf spring
    leaf spring number9

    Fire fighting truck can be divided into many types:

    1. According to vehicle size , There are mini fire fighting truck , Light fire fighting truck , Medium fire fighting truck , Heavy duty fire fighting truck .
    2. According to chassis drive type , there are 4*2 fire fighting truck , 6*4 Fire fighting truck , 8*4 fire fighting truck , and off road type 4*4 , 6*6 fire fighting truck .
    3. According to chassis brand , There are ISUZU fire fighting truck , Dongfeng fire fighting truck , Foton fire fighting truck , Faw fight fighting truck , Shacman fire fighting truck , Sinotruk fire fighting truck , Mercdes fire fighting truck , etc .
    4. According to fire agent , there are water tank fire fighting truck , dry powder fire fighting truck , water / Foam fire fighting truck.




    Company Profile:
    Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”

    The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
