Industrial 206kw Water Foam Fire Truck Double Cabin Howo Chassis
4×2 Drive

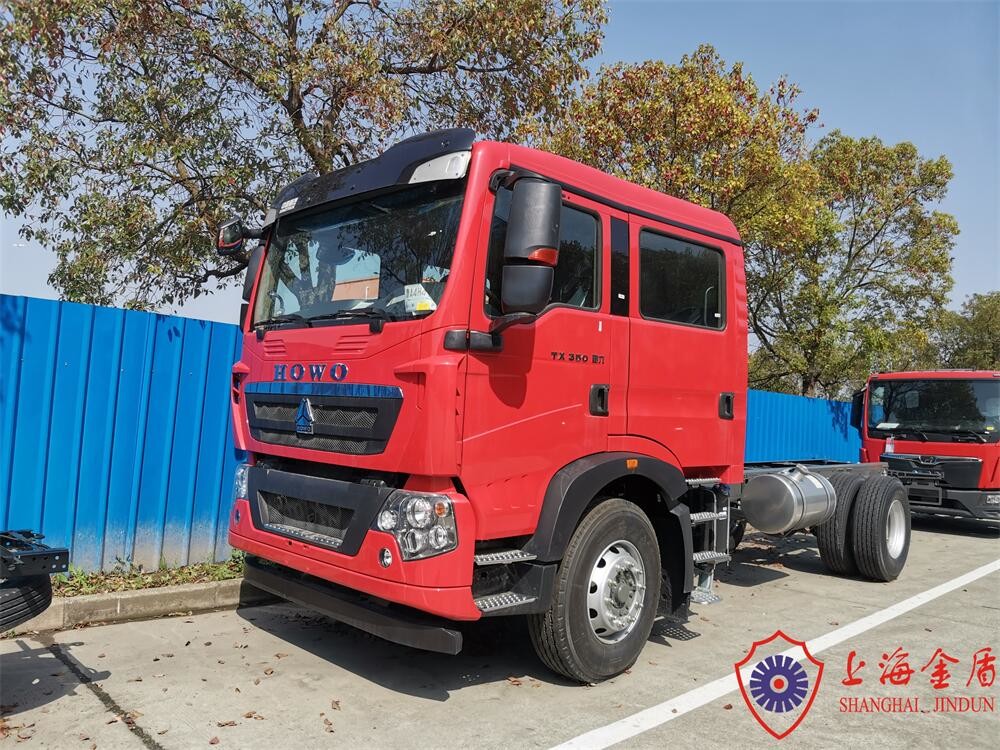

PM80 foam fire Truck is modified from SINOTRUK 2nd class chassis.
The vehicle layout is reasonable. Equipment compartment,liquid tank
and pump room are split structured.Structure is compact and
convenient to operate and maintenance.
The fire vehicle loaded with huge capacity of extinguishant and
with fast speed. It's widely used in petrochemical enterprises, oil
dock, oil depot, airports and large and medium-sized cities' fire
brigade.
Main configuration
| Whole vehicle | Dimensions | 8475×2500×3400 (mm) |
| | Full load permissible weight | 19000 kg |
| | Vehicle total weight | 11600 kg |
| | Fire-extinguishing agents | water+foam:8000 kg |
| | Max. Power (kw/hp) | 206kw |
| Chassis | Manufacturer | HOWO chassis |
| | Drive type | 4x2 |
| | Cab | double cabin (1+1+4) |
| | Wheelbase | 4600mm |
| | Clutch | pull type diaphragm |
| Fire pump | Manufacturer | China local brand |
| | Model | PL48 |
| | Flow | 60L/s |
| | Pressure | 1.0MPa |
| Tank | Capacity | Water: 6000kg, foam:2000kg |
| | Material | high quality stainless steel |
Equipment tank
| Material | Q235A high quality steel |
| Structure | Welding structure |
| Equipment compartment door | the light quality aluminum alloy, with shutter doors, lightweight
and reliable. |
| Internal structure | the inner frame for the introduction of aluminum lap technology,
can maximize space utilization and variability within the
equipment, users can request allocation of various sliding bracket,
carriage, rotating frame, and high strength plastic storage box and
so on, the structure from the space utilization, aesthetic
appearance, ease of handling equipment have reached the
international advanced level. |
Electrical system
The main lights in the cab at the top of the long row of lights,
configure the 100W alarm control system; a strobe lights installed
on both sides and the middle of each compartment (two red and
blue), on both sides of the vehicle is provided with LED side
lights installed below the rear side marker lamps, after the
installation of the contour light.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
