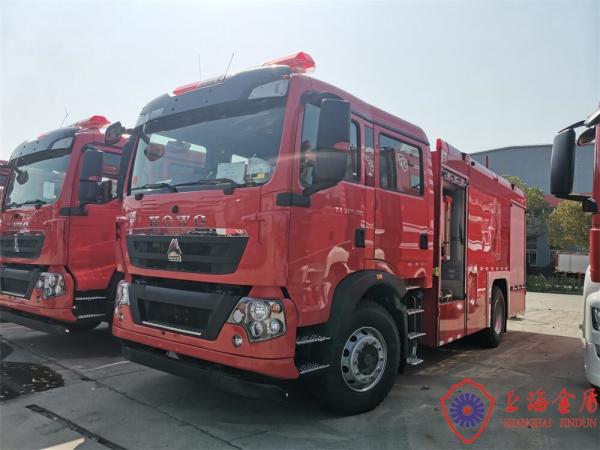

Stainless Steel Six Seats Municipal Water Foam Fire Fighting
Vehicle with large capacity of extinguishant
PM80 foam fire Truck is modified from SINOTRUK 2nd class chassis.
The vehicle layout is reasonable. Equipment compartment,liquid tank
and pump room are split structured.Structure is compact and
convenient to operate and maintenance.
The fire vehicle loaded with huge capacity of extinguishant and
with fast speed. It's widely used in petrochemical enterprises, oil
dock, oil depot, airports and large and medium-sized cities' fire
brigade.
Vehicle
| Dimension (L×W×H) | 8475×2500×3400 (mm) |
| Gross weight | 19800 (kg) |
| Complete vehicle shipping mass | 11600 (kg) |
| Seat (inc. driver) | 2+4 |
| Max. power | 206kw |
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5207M4617D5 |
| Drive type | 4x2 |
| Cab | Four door lengthen cab |
| Wheelbase | 4600mm |
| Max. speed | 100km/h |
| Min. turning diameter | ≤20m |
| Approach angle | 16° |
| Departure angle | 14° |
| Engine type | Pressure combustion, In-line six-cylinder, water cooling,
inter-cooling, direct injection diesel engine |
| Model | D10.28-40 |
| Max. torque | 1190N.M |
| Emission standard | China IV |
| Clutch | pull type diaphragm |
| Gearbox | Manual, 10 forward gear |
Electrical system
The main lights in the cab at the top of the long row of lights,
configure the 100W alarm control system; a strobe lights installed
on both sides and the middle of each compartment (two red and
blue), on both sides of the vehicle is provided with LED side
lights installed below the rear side marker lamps, after the
installation of the contour light.
