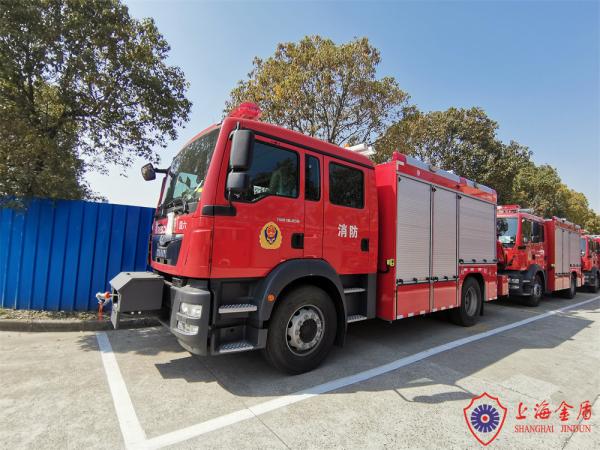

Chemical Accidents Rescue and Salvage Fire Vehicle Front Winch Rear
Crane
The JY100 chemical accidents rescue and salvage fire vehicle is
adapted from MAN TGM 18.290 chassis. Equipped with US imported
telescopic lifting lighting, HIAB truck crane and WARN traction
winch. The vehicle structure and layout is reasonable, easy
operation and maintaince, suitable for large and medium-sized city
public security fire brigages, petrochemical enterprised and
airport and other professional fire brigaded.
1. Vehicle
| Dimension (L×W×H) | 8655×2500×3500mm |
| Gross weight | 13066kg |
| Complete vehicle shipping mass | 12616kg |
| Rescue equipment quantity | 100pcs |
| Seat (inc. driver) | 2+4 |
2. Chassis
| Manufacturer | MAN |
| Model | TGM 18.290 |
| Drive type | 4x2 |
| Cab | Crew cab |
| Wheelbase | 4425mm |
| Max. total mass | 18000kg |
| Max. speed | 96km/h |
| Min. turning diameter | <15.6m |
| Engine type | In-line six-cylinder, inter-cooling, high pressure common rail,
electronic control |
| Model | D0836LFL30 |
| Max. power | 213kw |
3. Lift lighting system
| Manufacturer | American WB imported with original packaging |
| Model | NS6.4-20-4000 |
| Above ground level | 8m |
| Classification of wind resistance | 110km/h(China level 11) |
| Lamps specification | Quartz halogen lamp |
| Lifter material | Maraging 6061 T6 |
| Lamps power | 4×1000w |
| Lamps horizontal rotating angle | 360° |
| Lamps vertical rotating angle | 360° |
| Lighting life | ≥2000 hours |
| Illumination | ≥86000lx |
| Contraction time | ≤60S |
| Warranty period | 2 years |
| Remote control type | Drive by wire |
| Specialty | Master reset function |
4. Side girder
Features: made of welding high quality profiled steels, two
longitudinal beams through a plurality of beam intensity bearing
joint of high strength bolt connection. The side beam is installed,
use girder structure, to ensure that the original car beam of
uniform stress, improve the service life of the girder, and reduce
deformation caused by components twisted.
5. Electrical system
The main lights in the cab at the top of the long row of lights,
configure the 100W alarm control system; a strobe lights installed
on both sides and the middle of each compartment (two red and
blue), on both sides of the vehicle is provided with LED side
lights installed below the rear side marker lamps, after the
installation of the contour light.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
