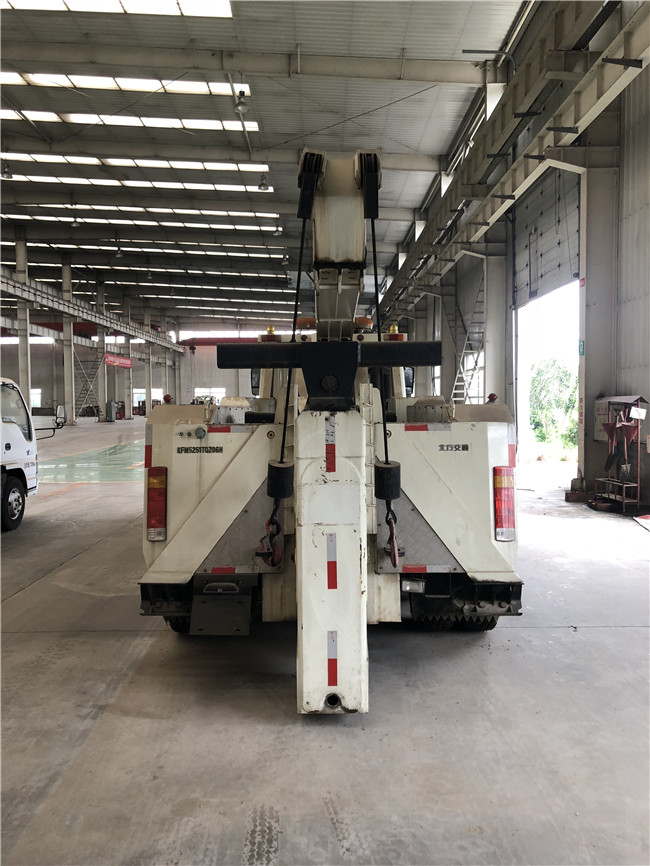

    6×4 Drive 28m Lifting 30° Rotation Boom Road Wrecker Truck

    Ask Lasest Price
    Brand Name : YD
    Model Number : SQZ9050S
    Certification : ISO, CE
    Price : Factory price. Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    6×4 Drive 28m Lifting 30° Rotation Boom Road Wrecker Truck

    Max Speed 85km/H 6×4 Drive 28m Lifting 30° Rotation Boom Road Wrecker Truck Max Lifting Weight Of Full Extension Boom 4000kg


    We provide various wreckers with different types of towing equipment such as Boom, Hook and Chain ("sling" or "belt lift"), Wheel lift (Spectale Lift), Flatbed ("rollback" or a "slide"), Integrated ("Self Loader" Snatcher, Quick Pick or Repo Truck), etc. combined with scissor lift, truck mounted crane, ect. ranging from 3MT to 60MT capacity

    Under lift StructureMax. Rated hanging weightkg12000
    The height from hook to the groundmm5690
    Extension traveling of lifting boommm2800
    Numbers of winchpiece2
    Rated pulling power of winchkg10000×2
    Dia. Of steel cablemm18
    Length of steel cablem40
    Min. Speed of steel cablem/min7
    Rotation angle°30

    Vehicle
    Parameters

    External dimensionmm9098×2500×3054
    Chassis modelCA1253P7K1L7T1E
    Axle basemm4725+1350
    Drive6×4
    The whole weight of empty loadkg16575
    Load of front axle of empty loadkg6920
    Load of rear axle of empty loadkg9655
    The whole weight of full loadkg25000
    Load of front axle of full loadkg7000
    Load of rear axle of full loadkg18000
    Wheel base (front/rear axle)mm1928/1847
    Front suspensionmm1375
    Rear suspensionmm1040
    Approach angleº23
    Departure angleº18
    Min. Ground clearancemm245
    Min. Turning diameterm≤20.4
    Grade ability%≥29
    Max. Speedkm/h85
    Engine model-BF6M1013-24E3
    Engine emissionL7.146
    Rated powerkw/r/min177/2300
    Max. Torquen·m/r/min930/1400
    Fuel typeDiesel
    Standard of emissionEN III
    Tire size10.00R20(option 10.00-20,11.00-20,11.00R20)
    Persons3
    Engine modelBF6M1013-26E3
    Rated power192
    Engine emission7146
    Optional EngineEngine modelCA6DF3-24E3
    Rated power177
    Engine emission6740
    Engine modelCA6DL1-26E3
    Rated power192
    Engine emission7700
    Engine modelCA6DL1-26E3U
    Rated power192
    Engine emission7700
    Engine modelCA6DF3-24E3U
    Rated power177
    Engine emission6740
