Hydraulic Control Flatbed Road Wrecker Truck 360 Rotation Angle ISO9001

Shanghai Jindun special vehicle Equipment Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Hydraulic Control Flatbed Road Wrecker Truck 360 Rotation Angle ISO9001 from wholesalers

    Buy cheap Hydraulic Control Flatbed Road Wrecker Truck 360 Rotation Angle ISO9001 from wholesalers
    • Buy cheap Hydraulic Control Flatbed Road Wrecker Truck 360 Rotation Angle ISO9001 from wholesalers
    • Buy cheap Hydraulic Control Flatbed Road Wrecker Truck 360 Rotation Angle ISO9001 from wholesalers

    Hydraulic Control Flatbed Road Wrecker Truck 360 Rotation Angle ISO9001

    Ask Lasest Price
    Brand Name : YD
    Model Number : SQZ1860HV
    Certification : ISO9001:2008
    Price : USD
    Payment Terms : T/T, L/C
    Supply Ability : 50 SETS PER MONTH
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

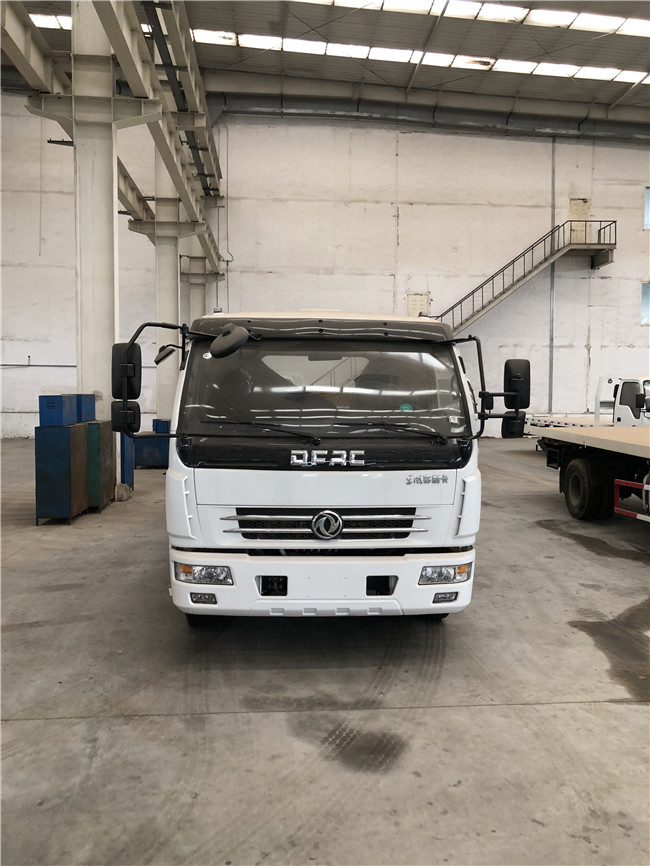

    Hydraulic Control Flatbed Road Wrecker Truck 360 Rotation Angle ISO9001

    Hydraulic Control Flatbed Working Road Wrecker Working Stroke 2680mm

    1.We are professional manufacturers to do the special vehicles ,such as fire truck ,wrecker tow truck, aerial work platform truck, etc .

    2.We supply all brands special truck , Faw , Foton, Sinotruck Jac , Jmc , ,Dongfeng all avaliable.

    3 Drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4

    4. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .

    5 The material of the thermal insulation container could be: Glass fiber reinforced plastic, color steel plate, aluminum alloy, stainless steel

    ITEMUNITDESCRIPTION
    VehicleDONGFENG tow truck wrecker
    Overall dimensionmm7470×2350×2440
    Flatbed dimension5550×2300
    Curb weightkgAppro×4910
    Flatbed loading weightAppro×4000
    Carriage arm loading weightAppro×3000
    Wheel basemm3800
    Front/Rear overhang1210/2460
    Approach/departure angle°24°/10°
    Standard configuration1) 4 tons winch 1 set
    2) Auxiliary wheel 2pcs
    3) Rear towing arm assembly 1 set
    4) Steel wire rope 25m
    5) Bunding belt 4pcs
    6) Rear tail lights LED,both sides electronic lights.
    7) Tool box
    Working Performance1. It can tow two cars.
    2. Hydraulic control flatbed and carriage arm,with hydraulic operation lever.
    3. Winch speed : 8m/min.
    4. Flatbed working stroke: 2680mm
    5. Flatbed minimum tilt angle: 10°
    6. Carriage arm telescopic stroke: 1180mm
    7. The max effective length of the carriage arm: 1300mm
    Chassis Parameter
    CabinSingle row cabin,air conditioner,power steering, cabin roof warning light, 3 passangers
    Drive type4×2,left /right hand dirve
    EngineBrand : DONFGENG CHAOCHAI POWER
    Model :CY4102-E3C, 120hp
    Type : diesel, 4 cylinder, turbocharged, intercooled.

    The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
