    2 Boom Sections Flatbed Road Wrecker Truck Diesel Fuel Payload 3000kg

    Ask Lasest Price
    Brand Name : YD
    Model Number : SQZ1860HV
    Certification : ISO, CE
    Price : USD
    Payment Terms : T/T, L/C
    Supply Ability : 50 SETS PER MONTH
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

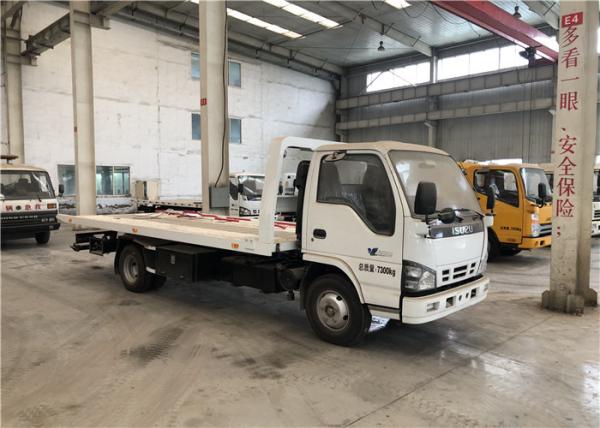

    2 Boom Sections Flatbed Road Wrecker Truck Diesel Fuel Payload 3000kg

    2 Boom Sections Flatbed Working Road Wrecker Diesel Fuel Payload 3000kg
    The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction. The wrecker is mainly used for road fault vehicles and urban illegal vehicles, rescue and so on. The wreckers are mainly divided into: towed joint type, towed separation type, one to one type, flat one to two type, multi-purpose wrecker, hydraulic automatic clamping type.

    Brand available: ISUZU, Dongfeng, JMC, JAC, Steyr, Iveco etc.
    Ton:2 tons, 3 tons, 5 tons, 8 tons, 10 tons, 15 tons, 25 tons, 30 tons, 50 tons, 60 tons.
    Driving type: 4x2, 6x4, 8x4 left hand drive / right hand drive
    Vehicle4*2 Dongfeng Flatbed Wrecker Truck
    BrandDFAC
    CabSingle row
    Vehicle Description
    Overall dimensions(mm)7420*2300*2950
    G.V.W (kg)7490
    Curb weight(vehicle) (kg)5295
    Loading capacity (kg)3000-5000
    Max speed (Km/h)95
    Engine Description
    Engine modelCY4102-C3C
    Maximum power88kw/120hp
    Displacement (lit)3856
    Engine ManufacturerChaochai Diesel Manufacture
    Chassis Description
    Chassis ModelEQ1070TJ9AD3
    Wheel base(mm)3800
    F/R track base(mm)1835/1640
    F/R overhang(mm)1180/2440
    Spring plate11/9+7
    Front axle / rear axle(t)2.2/5
    Type of fuelDiesel
    Gear box6-speed with over drive
    Brake systemAir braking
    Operation control systemPower Steering
    Electric system24V
    Tyres&Tire quantity7.50-16 & 6+1
    Crane Description
    ModelSQ3.2SK2Q
    Max Lifting Capacity (kg)3200
    Max Lifting Moment (T.M)6.72
    Crane Weight(kg)1105
    Installation Space(mm)850
    Max. Operating Diameter (m)7.5
    Max. Lifting Height (m)9.5
    Max Pressure of Hydraulic System(MPa)20
    Oil Tank Capacity30
    Rotation AngleAll Rotation 360°
    Boom Section3
    Special performance&Equipment
    Payload 3000kg
    Rated Pull Force of Winch 40 KN
    Min. Inclination Angle 12°
    UNDER-LIFT
    Max. lift weight (retracted) 1600kg
    Max. lift weight (extended) 1100 kg
    Rated towing capacity 6400kg
