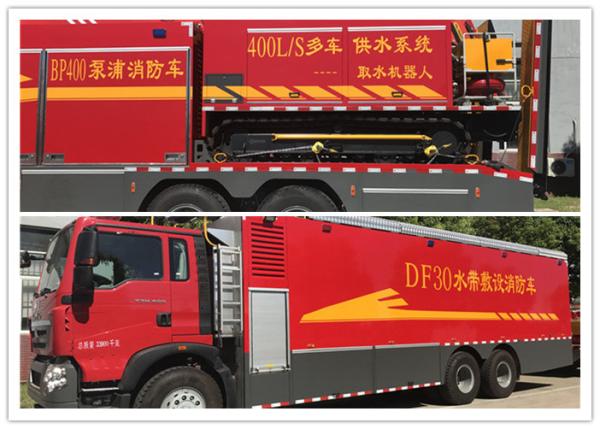

400L Remote Water Supply System Fire Truck with 750HP Power &
2000kg Rated Load
Hydraulic system
Hydraulic system is composed of hydraulic pump, hydraulic rubber
tube, hydraulic motor and hydraulic valve.
- Hydraulic pump: use imported brand, discharge:≥180ml/r, oil pressure ≥35MPa
- Hydraulic rubber tube: use imported brand, oil inlet rubber tube proof pressure:
≥35MPa,oil return rubber tube proof pressure:≥4MPa
- Hydraulic motor:use imported brand,discharge≥100ml/r, oil pressure≥35MPa
- Hydraulic valve:use imported brand multitandem valve
Electrical control system
The wireless remote control (remote control distance: = 100m) +
emergency control mode can realize the crawler chassis walk, the
boat floating water pump, hydraulic hose reel to rotate, the
display screen is fixed to the water intake module can display the
engine speed, the system can display real-time voltage, water
temperature, oil pressure, working time and so on, when the oil
pressure low. High temperature, low voltage can automatically alarm
when abnormal conditions.
Framework
Frame used high-quality carbon steel welded structure, both sides
of the structure, is conducive to the engine and hydraulic system
for a long time work, and to facilitate the maintenance of the
vehicle.
Pressurization system
The pressurization system is composed of an independent engine, a
booster pump, a low position water inlet and outlet pipe line, a
control system and so on.
pumping truck onboard equipment
| Name | Specification | No. | Notes |
|---|
| 1 | Liner hose assembly | 10-250-20 | 2 | |
| 2 | Liner hose assembly | 10-250-10 | 2 | |
| 3 | Liner hose assembly | 10-250-5 | 2 | |
| 4 | Hose connection wrench | General type | 4 | |
| 5 | Vertical water supply bend | DN250 | 2 | |
| 6 | Hydraulic rubber tube protector | General type | 1 | |
| 7 | Highlight flashlight | | 2 | |
| 8 | Handheld anti-explosion interphone | | 1 | |
| 9 | Chassis onboard tools | Standard | | |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
