Anti Corrosion Plate 120L/S Fire Equipment Truck, Water Tanker Fire Truck

Shanghai Jindun special vehicle Equipment Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Anti Corrosion Plate 120L/S Fire Equipment Truck, Water Tanker Fire Truck from wholesalers

    Buy cheap Anti Corrosion Plate 120L/S Fire Equipment Truck, Water Tanker Fire Truck from wholesalers
    • Buy cheap Anti Corrosion Plate 120L/S Fire Equipment Truck, Water Tanker Fire Truck from wholesalers
    • Buy cheap Anti Corrosion Plate 120L/S Fire Equipment Truck, Water Tanker Fire Truck from wholesalers

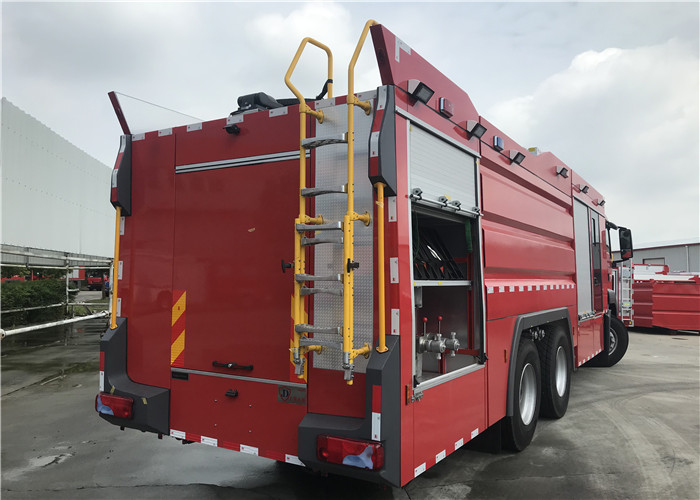

    Anti Corrosion Plate 120L/S Fire Equipment Truck, Water Tanker Fire Truck

    Ask Lasest Price
    Brand Name : Jindun
    Model Number : PM120B
    Certification : ISO9001/CCC
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 90 days after sign contract
    Supply Ability : 350 units/year
    • Product Details
    • Company Profile

    Anti Corrosion Plate 120L/S Fire Equipment Truck, Water Tanker Fire Truck

    Anti Corrosion Plate 120L/S Fire Equipment Truck, Water Tanker Fire Truck


    Fire monitor

    Model7500-EXM
    PositionRear roof
    Flow120L/s
    Pressure1.0MPa
    Rangewater≥85m ,foam≥65m
    Rotation angle

    Level ≥270°

    Max. elevation angle ≥+45°

    Max. depression angle ≥-7°


    Liquid tank

    CapacityWater: 12000kg Foam: 6000kg
    Material304 high quality corrosion resistant plate
    StructureTotal side girder
    Device

    2 ingate

    1 overflow device

    2 liquid level sensor

    2 DN50 drain outlet with valve

    4 filling pipe end

    Conform to rule GA39.4-92


    Side girder

    Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.


    Roll on roll off (RORO) ship
    It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.

    Bulk carrier ship

    It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.

    Container ship
    It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.


    FAQ:

    1. Q:Are you a factory or a trade company?

    A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.


    2. Q:Where is your factory located?

    A:We are located in Shanghai Province,China.


    3. Q:What's your payment method?

    A: T/T and L/C are preferred.


    4.Q:Do you arrange shipment for the vehicles?

    A:Yes, we can arrange shippment based on trade terms.


    5. Q: How is the packing?

    A:All the packing comply with exporting standard.


    6. Q: What's your main product?

    A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.


    Any other questions, please do not hesitate to contact with us.
