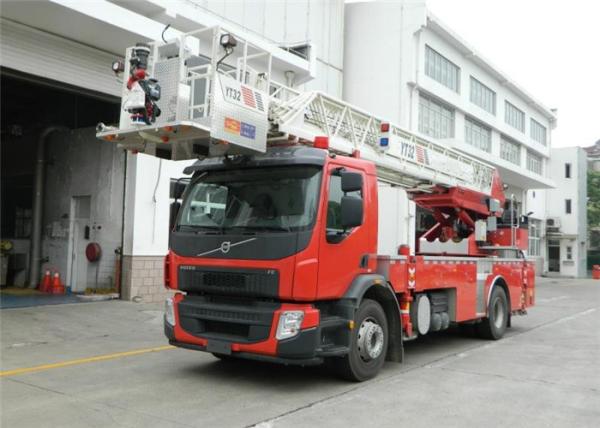

32 Meters Telescopic Boom 90km/H Aerial Ladder Fire Truck H-shape
Outrigger
Main features:
1. Expand faster: Compared to other domestic and imported ladder
trucks, with the fastest expansion rate;
2.Advanced technology: exclusive for rotating compass leveling
technology in China, with features of a large adjustment range,
short adjustment time, and reliable adjustment;
3. Performance and reliability: chassis, ladders, pumps, fire
monitor and other major equipment are imported from other
countries, environmental adaptability, lower failure rate;
| Vehicle model | YT32 |
| chassis | Chassis model | VOLVO FE300 |
| driving | 4×2 |
| Wheelbase | 4745 mm |
| engine | Euro V emission standard, water cool, electro control , diesel
engine in line. |
| Engine power | 221Kw/2100rpm
|
| Generator battery | 12V x 2,100Ah |
| cabin | 1+1 |
| dimension:(L×W×H) | 10000×2500×3750mm |
| Gross weight | 18000kg |
| Max. running | ≥90km/h |
| outrigger | structure | H style |
| longitudinal | 5500mm |
| transverse | 6000mm |
Foam Monitor head | self made stainless steel foam monitor head |
| Working cage | nozzles of water spray curtain system to protect cage occupants
from radiant heat,control is in cage, manual valve
|
Fire plumbing | Down part:stainless pipe+aluminium pipe |
Upper:5 ladder pipe, aluminium alloy seamless tube Soft connection pipe:stainless steel knitted wire soft tube |
Water coupling | Water coupling | specification |
| Coupling from end of vehicle | 2XDN80 |
| Coupling type:quick coupling or slow coupling |
| electric | turntable control: left side of turntable, comfortable chair |
| The vehicle control type: touchable operating screen, computer
control |
2 round alarm light on top of cab siren in cab visible reverse monitor preserved radio interface |
24V charger plug wind gauge in working cage overloading warning for working cage video monitor and disk video recording |
| Body frame | Step well ladder for climbing:each one for left and right side |
| Body structure:aluminum alloy welding structure |
| Body coaming:sticking with aluminium alloy plate |
| Body platform/equipment box pump house top: oxidation antislip
aluminium alloy plate |
| Equipment box/pump house/tool box:Aluminium roller shutter |
| Body color | boom and fender is light white Cab and body frame is red |
| |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
