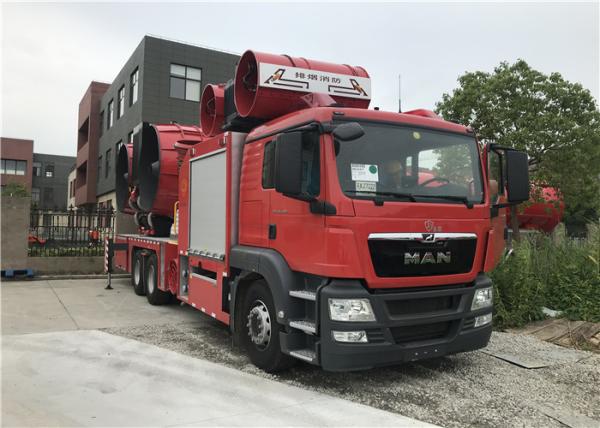

MAN Chassis 353KW 6x4 Drive Large Smoke Exhaust Fire Fighting Truck
with Huge Fans 28 Ton
The vehicle adopts the latest TGS 33.4806X4BB national V chassis
produced by German manufacturer, and carries a TCD2015 V8
turbocharged diesel engine manufactured by original imported Dowitz
Company.
Applications:
(1) large-scale cleaning operations;
(2) large-flow air supply and smoke exhaust;
(3) super-large air volume, super-high air pressure, effectively
changing the direction of fire wind;
(4) providing large-scale cooling and dust removal in the fire
field.
(5) It provides a strong guarantee for "extinguishing fires and
rescuing catastrophes".
Main specifications
| Chassis brand | Man |
| Model | TGS 33.480 6X4 BB |
| CCC mode | TGS 33.480 |
| Drive type | 6x4 |
| Drive cab | MAN TGS L Cab |
| Wheelbase | 5,100+1,400 mm |
| Rear suspension | 2,750 mm |
| Maximum engine power | 353 kW/480 HP |
Load capacity
| Chassis weight | 9,593 kg (4996+4597, this data is for reference only) |
| Maximum allowable load | 23,407 kg (wheelbase 5,100 mm) |
| Front axle allowable load | 7,500 kg (7,000 KG for record) |
| Rear axle allowable load | 2x13, 000 kg (26000KG) |
| Vehicle allowable total weight | 33,000 kg |
PTO
ZF engine full power takeoff NMV221, speed ratio 1.55, maximum
output torque 1,300 Newton meters, suitable for long-term
operation, rotation direction: counterclockwise (same as engine
rotation direction, driving direction), output position: top
center, flange output, 120 mm flange output (8 holes).
(Gearbox oil cooling device has been installed.)
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's your main product?
A: Our main product include : water & foam tank trucks, CAFS fire
trucks, chemical fire trucks, emergency rescue vehicles, lighting
trucks, aerial ladder and platform trucks, airport fire trucks,
water tower fire trucks and other general fire trucks. The products
have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
