4000 Liters RHD Diesel Sewage Vacuum Suction Truck

Ask Lasest Price
Brand Name :	ISUZU
Model Number :	5253GXWD
Certification :	ISO
Price :	USD
Supply Ability :	500 UNITS PER YEAR
Delivery Time :	2 MONTHS

Add to Cart

Product Details
Company Profile

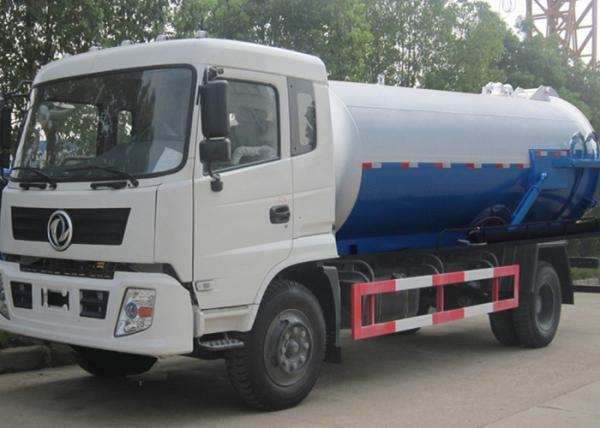

4000 Liters RHD Diesel Sewage Vacuum Suction Truck

Professional Manufacture Suction-type Street Vacuum Sewage Suction Trucks Cleaning Truck

The truck uses a round tank with good pressure-bearing performance. Stainless steel tanks are optional. Adopt a water-cooled vacuum pump of the well-known brand, making double pumps in series. It has advantages such as long single continuous operation time, high absolute working pressure, large flow rate and suction power, and long suction range. The tailgate adopts an independent patented opening and closing locking device that come with a hydraulic system in well safety protection. The double insurance mechanism makes the container and the tailgate rubber strip reliably sealed, ensuring that the sewage is kept closed during the collection and transportation. The liquid level display of the sewage tank is easy to observe, easy to disassemble, and easy to clean and maintain.

4000liters vacuum suction truck
Vehicle Parameters
General	Chassis Brand	FOTON(FORLAN)
	Overall Dimension(mm)	6350×2080×2395
	GVW/Curb/Rated loading Weight(kg)	7360/4290/2875
Chassis Parameters
Cab	Cab Seat	2
	Air Conditioner	No
Engine	Fuel Type	diesel
	Engine Model	4B2-115C50
	Engine Brand	Quanchai
	Power(kw/hp)	85/115
	Displacement(cc)	2545
	Emission Standard	Euro5
Chassis	Drive Type	4*2
	Transmission	5 speed, Manual
	Wheelbase(mm)	3360
	Tyre Specification	7.00R16
	Tyre No.(pcs)	6+1
	Max Speed(km/h)	95
	Paint	Blue and White
Sewage Tank Structure Parameters
Tank Volume	4000liters	Tank Material	Carbon steel
Tank Thickness	4mm	Vacuum pump	XD-240
Pump speed	80L/S	Suction pipe	6m
Standard configuration	Chassis, sub frame,sewage tank, manhole, vacuum pump,liquid indicator,outlet valve(by gravity),hand-washing device,6m suction pipe,side supporting rod,oil-water separator,anti-overflow valve,hydraulic cylinder for both side for tank lifting, tank back door can be hydraulically opened
