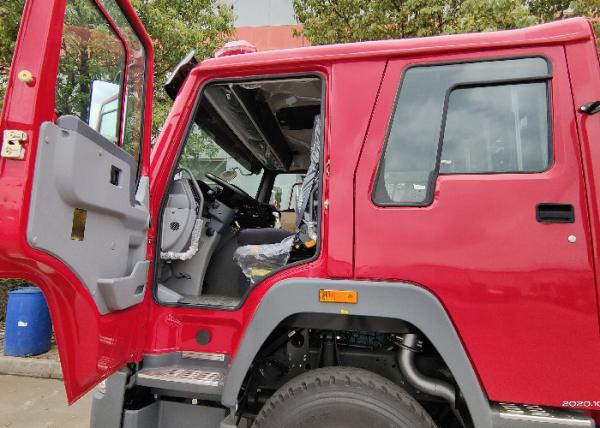

HOWO Chassis 15ton Water And Foam Fire Truck Gross Weight 33000kg 294kw Max Power

Pipeline

Liquid tank

Dry powder tank

• Dry powder filling capacity: 500Kg
• Working pressure: 1.2 ~ 1.4MPa
• Dry powder tank is a pressure vessel which is mainly welded by Q345R material. It is made of feeding powder port, discharging powder port, nitrogen delivery pipe and discharge powder tube, tank nitrogen delivery pipe is a ring shape which is equipped with multiple intake valves, so that gas and powder can mixing uniformly, with fluidized state. The design of intake valve makes dry powder be inaccessible to nitrogen gas delivery pipe.
• All cylinders are placed in a bottle rack to supply gas for dry powder tank. Nitrogen cylinder group is consisting of nitrogen cylinder, bottle valve, high pressure gauge, air inflation connection, high pressure ball valves and other components.

Dry powder monitor (1 pcs)

• Model: PF40
• Effective spray rate: ≥40 Kg / s
• Shot range: 40 ~ 45m
• Rotation angle: horizontal 360 °, pitching -15 ° ~ 80 °
• Dry powder gun and hose reel: 2 sets (30m)
• Effective spray rate: 5Kg/s
• Shot range: ≥12m
• Pressure reducing valve and safety valve
• This device use Chinese reducing valve. It is a special pressure reducing valve of dry powder fire extinguishing equipment which has features of reliable performance, small size, large gas supply, safety and convenience.

Dry powder system control box
Equipped with air source main valve, air filter, in the electric steering box is equipped with solenoid valve, fuse boxes, relay, binding post and so on.

FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.

2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.

Shanghai Jindun special vehicle Equipment Co., Ltd.​ is a high-tech special vehicle enterprise and flagship company of jindun group. It owns first class factory, internationally advanced processing equipment, gathers many top technicians and industrial experts, establishes national grade technology R&D center, and has 112 types of products, including truck crane, aerial working platform truck, road wrecker truck, road maintenance truck, dump truck, CAFS fire trucks, chenical fire truck, water tank foam trucks, emergency rescue vehicles, gas supply vehicles, lighting truck, satellite communication command vehicle, road-rail convertible vehicle, aerial ladder trucks, aerial platform truck, airport fire trucks, long distance water supply truck, water tower fire truck and other general fire trucks.

    Our company regards technological progress as the driving force for the development of enterprises. At the same time, the company improves the capability of independent research and development, constantly improves the technology content of products, and introduces new products. In order to ensure product quality reliability, the company has carried out experimental and simulated assembly for the key parts of the company, 100% to improve the stability of the product. Strong new product research and development force, stable and reliable product quality, good commercial reputation, efficient enterprise management, promote the continuous development among the advanced ranks of fire truck industry.
