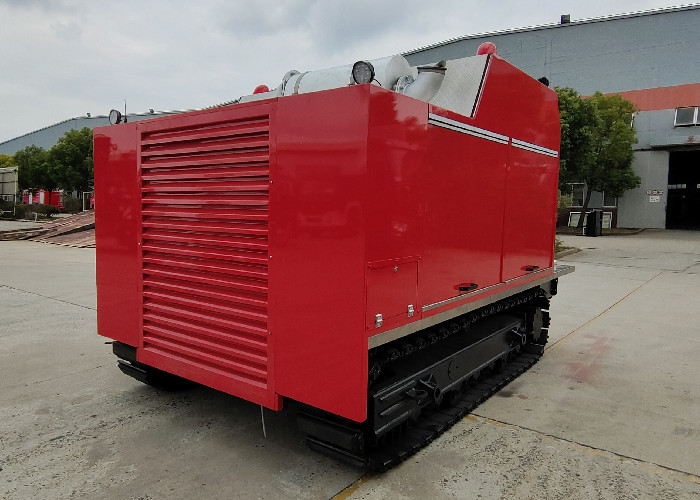

551kw (750HP) Engine Power Crawler-Type Water-Intake Supercharging Robot

The crawler-type water intake and booster robot is composed of a power system, a crawler chassis, a water intake system, a booster system, a boom system, a hydraulic system, an electrical control system, and a frame.

4,Booster system

Booster pump brand model:Sanlian Pump Industry HS250-200-550A

Performance parameter:Rated discharge:200 L/S,Rated pressure:1.0 MPa

5,Boom system

The crawler type water intake booster robot is equipped with a small boom. When water is taken from the bridge deck or wharf, the floating boat pump can be lifted by a hydraulic winch installed at the front end of the boom. The main parameters are as follows:

Model: Haoyi HY1.8Z4

Maximum arm extension: 4.5m

Lifting mass at maximum boom extension: 500kg

Hoisting mass of additional Winch: 1000kg

Additional winch wire rope length: 40m

6,Hydraulic system

The hydraulic system consists of hydraulic pump, hydraulic hose reel (equipped with 40m oil inlet and return hose), hydraulic motor, hydraulic oil tank, hydraulic valve, etc. Hydraulic pump:Danfoss (Denmark) brand, displacement: 193ml / R, oil pressure: ≥ 35MPa

hydraulic hose:Select Italian Manuli brand, pressure resistance of oil inlet hose: ≥ 35MPa, pressure resistance of oil return hose: ≥ 4MPa

Hydraulic motor: Rexroth (Germany) brand, displacement: 107ml / R, oil pressure: ≥ 35MPa

Hydraulic valve: Danish Danfoss multi way valve
