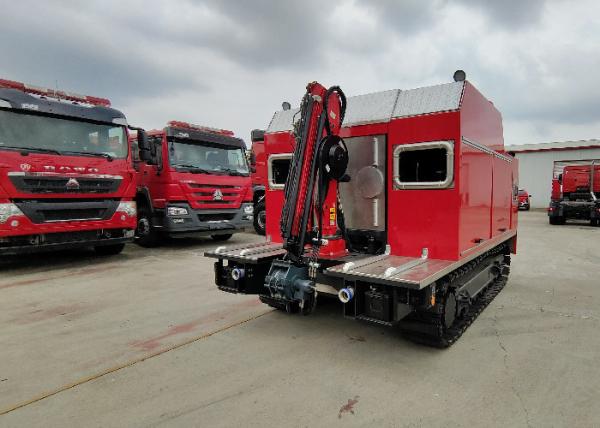

200L/S Floating Pump Crawler Tracking Water Intaking Truck With Cummins Engine

The crawler-type water intake and booster robot is composed of a power system, a crawler chassis, a water intake system, a booster system, a boom system, a hydraulic system, an electrical control system, and a frame.

3)floating fire pump

model:T B4/200GQ

performance data: flow:200 L/S,pressure:0.4 MPa

composition and material: The floating pump is composed of a large flow fire pump, a hydraulic motor, a floating box, a filter screen and so on. Pump body and impeller are precision casting high strength aluminum alloy, pump shaft, over flow parts, pump body and impeller using a reliable anti-corrosion process for processing. Floating body material for impact resistant high strength materials, with a filter surface debris cleaning tools, can be used to clean up the filter.

Weight: ≤110kg

4) Boom system

Water module car equipped with small crane, when the water in the deck or dock, can be installed in the hydraulic hoist lifting pontoon boat pump boom front, water supply pipe will be linked to the fixed arm lifting water hose, to avoid folding effect of intake water. It’s main parameters are as follows:

Boom extend range: ≥5 m

Max. whole lifting weight: ≥500 kg

Additional winch lifting capacity: ≥1000 kg

Additional winch wire rope length: ≥30 m
