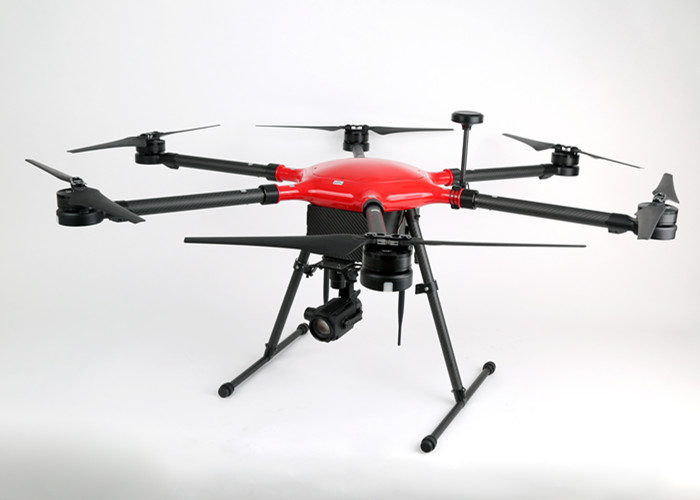

Shanghai 30X Optical Zoom Lens Firefighting Drones Ultra Long Range Inspection

Symmetric motor wheelbase: 1133mm

Overall dimension: 1400 mm x 1300 mm x 430mm((unfold)

480 mm x 430mm x 430mm(fold)

Blade size: diameter * pitch: 21x7 inch

Standard take-off weight: 10kg (including battery)

Maximum take-off weight: 15 kg

Maximum rising speed: 5 m/s

Maximum rate of descent: 2 m/s

Maximum horizontal flight speed:

positioning mode: 5m/s

motion mode: 8m/s

attitude mode: 15m/s

Maximum tilt Angle:

positioning mode: 30°

motion mode: 30°

attitude mode: 30°

Maximum rotation angular velocity: 120°/s

Maximum wind speed: 8 m/s

Standard flight time: 60 minutes (no load)

Maximum load: 7kg

Operating environment temperature: -10℃ to +40℃

Satellite positioning module: GPS/GLONASS or BDSS/GLONASS dual mode dual redundancy

Hover accuracy: vertical: ± 0.5m (when GPS positioning is working normally) horizontal: ± 0.1m (when GPS positioning is working normally)

AC input: 200-240v

Charging power: 1044W*2

Discharge power: 100W (50W x 2)

Charging current range: 1.00-20.0a x 2

Discharge current :2.0A*2

Balance current: 1.0-1.5a/knot

Rechargeable battery type: lithium battery (LiPo)/ high-voltage lithium battery (LiHV)

Lithium battery number: 12 x 2

Charging mode: quick charging, precise charging, battery storage

Shanghai Jindun special vehicle Equipment Co., Ltd.​ is a high-tech special vehicle enterprise and flagship company of jindun group. It owns first class factory, internationally advanced processing equipment, gathers many top technicians and industrial experts, establishes national grade technology R&D center, and has 112 types of products, including truck crane, aerial working platform truck, road wrecker truck, road maintenance truck, dump truck, CAFS fire trucks, chenical fire truck, water tank foam trucks, emergency rescue vehicles, gas supply vehicles, lighting truck, satellite communication command vehicle, road-rail convertible vehicle, aerial ladder trucks, aerial platform truck, airport fire trucks, long distance water supply truck, water tower fire truck and other general fire trucks.

    Our company regards technological progress as the driving force for the development of enterprises. At the same time, the company improves the capability of independent research and development, constantly improves the technology content of products, and introduces new products. In order to ensure product quality reliability, the company has carried out experimental and simulated assembly for the key parts of the company, 100% to improve the stability of the product. Strong new product research and development force, stable and reliable product quality, good commercial reputation, efficient enterprise management, promote the continuous development among the advanced ranks of fire truck industry.
