30% Maximum Climbing Ability Rescue Fire Fighting Vehicle 100km/H Maximum Speed

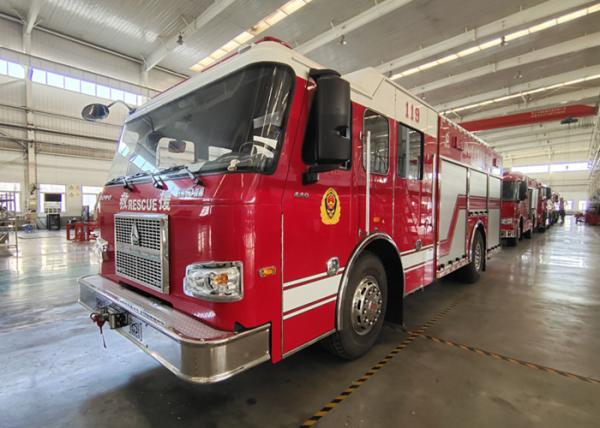

JY98/H5 rescue fire truck is a fire truck that modified with SINOTRUK HOWO chassis. It has many functions such as demolition, traction, lifting, lighting, etc. It can deal with accidents like traffic accidents and natural disasters.

Model: SG65-41000G (Interstellar)

Lifting Height: 6.45m

Terrain clearance: ≥7.5m

Control system operating voltage: DC24V

Lamp operating voltage: 220V

Lamp power: 1000W

Horizontal rotation angle of the lamp: 　 360°

Vertical rotation angle of the lamp: 　　　360°

Electric winch

Model N12000XF(US Champion)

Voltage 24V

Winch rope length 38m

Maximum tension of winch 5t

Traction speed 3.57m/min

Deflection angle 10°

Model: SQ5ZK2(XCMG)

Maximum lifting mass: 5000kg

Maximum lifting moment: 10.5T.m

Swing moment: 1.2T.m

Maximum working range: 8m

Rotary range: 370°

System rated pressure: 30MPa

Shanghai Jindun special vehicle Equipment Co., Ltd.​ is a high-tech special vehicle enterprise and flagship company of jindun group. It owns first class factory, internationally advanced processing equipment, gathers many top technicians and industrial experts, establishes national grade technology R&D center, and has 112 types of products, including truck crane, aerial working platform truck, road wrecker truck, road maintenance truck, dump truck, CAFS fire trucks, chenical fire truck, water tank foam trucks, emergency rescue vehicles, gas supply vehicles, lighting truck, satellite communication command vehicle, road-rail convertible vehicle, aerial ladder trucks, aerial platform truck, airport fire trucks, long distance water supply truck, water tower fire truck and other general fire trucks.

    Our company regards technological progress as the driving force for the development of enterprises. At the same time, the company improves the capability of independent research and development, constantly improves the technology content of products, and introduces new products. In order to ensure product quality reliability, the company has carried out experimental and simulated assembly for the key parts of the company, 100% to improve the stability of the product. Strong new product research and development force, stable and reliable product quality, good commercial reputation, efficient enterprise management, promote the continuous development among the advanced ranks of fire truck industry.
