    2100nm 1080rpm Aerial Ladder Fire Vehicle with Fire Monitor Flowing 4800L/Min

    Ask Lasest Price
    Brand Name : Jindun
    Model Number : DG44
    Certification : ISO9001/CCC
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 150 days
    Supply Ability : 350 units/year
    • Product Details
    • Company Profile

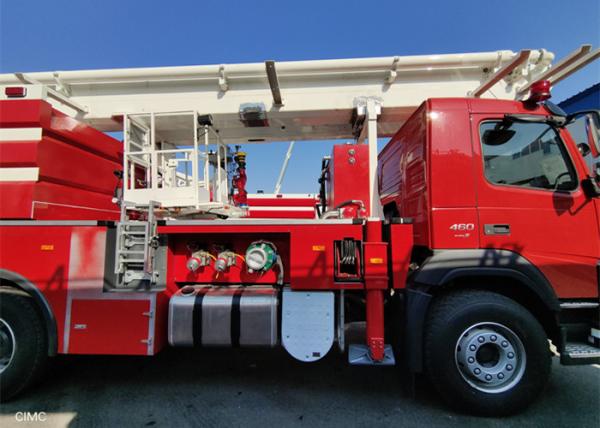

    2100nm 1080rpm Aerial Ladder Fire Vehicle with Fire Monitor Flowing 4800L/Min

    2100nm 1080rpm Aerial Ladder Fire Vehicle with Fire Monitor Flowing 4800L/Min




    Fire monitor


    ModelTFT hurricane
    ManufacturerUS TFT
    Flow4800L/min
    Pressure≤0.6MPa
    Shooting rangewater≥70m ,foam≥65m
    Swivel/up/depression angle-45°~ +90°
    Level angle0~348°
    Inside nominal diameter100mm

    Front Pump room and Rear Equipment storage compartment


    ManufacturerShanghai Jindun special vehicle equipment Co., Ltd
    MaterialHigh quality aluminum 6061

    2mm aluminum sheet Skin and plaque

    3mm aluminum alloy base plate and roof

    StructureHigh quality aluminum 6061 welding structure
    Curtain doorRoller shutter
    LadderAluminum profile single ladder

    Working platform


    Dimension2000×900×1100mm
    MaterialToughness seamless profile
    StructureToughness seamless profile welding structure
    Flexing angles45°
    Cage load capacity400KG
    Equipped with anemograph, overload alarm device, ultrasonic anti-collision device, hydraulic power tools and quick connection

    Hydraulic system

    Plunger-type hydraulic oil pump


    ModelAV10
    ManufactureRexroth
    Geometric displacement108cm3/r
    Max. speed of revolution1500rpm
    Rated Pressure31MPa

    Outrigger control valve


    Model315758JP32G01
    ManufacturerItaly GELTCH
    Pressure21MPa
    Working Pressure35MPa

    Boom control valve


    ModelPVG32
    ManufacturerDanfoss
    Pressure21MPa
    Working Pressure35MPa


    FAQ:

    1. Q:Are you a factory or a trade company?

    A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.


    2. Q:Where is your factory located?

    A:We are located in Shanghai Province,China.


    3. Q:What's your payment method?

    A: T/T and L/C are preferred.


    4.Q:Do you arrange shipment for the vehicles?

    A:Yes, we can arrange shippment based on trade terms.


    5. Q: How is the packing?

    A:All the packing comply with exporting standard.


    Any other questions, please do not hesitate to contact with us.
