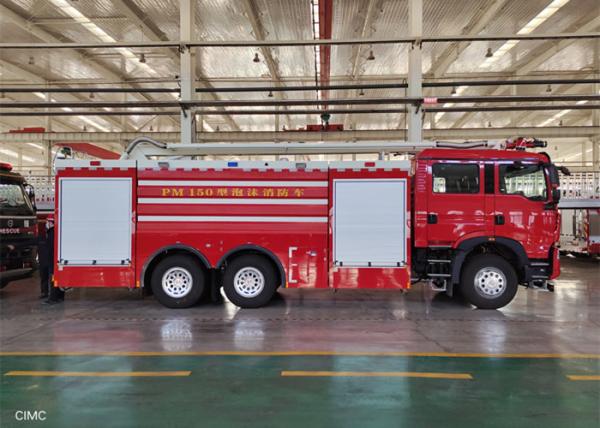

500kg Dry Powder Filling Capacity 500Kg 100Km/H Foam Fire Truck Brigade Truck 6.45m Lifting

Vehicle

Chassis

Fire pump

Dry powder tank

1. Dry powder filling capacity: 500Kg

2. Working pressure: 1.2 ~ 1.4MPa

3. Dry powder tank is a pressure vessel which is mainly welded by Q345R material. It is made of feeding powder port, discharging powder port, nitrogen delivery pipe and discharge powder tube, tank nitrogen delivery pipe is a ring shape which is equipped with multiple intake valves, so that gas and powder can mixing uniformly, with fluidized state. The design of intake valve makes dry powder be inaccessible to nitrogen gas delivery pipe.

All cylinders are placed in a bottle rack to supply gas for dry powder tank. Nitrogen cylinder group is consisting of nitrogen cylinder, bottle valve, high pressure gauge, air inflation connection, high pressure ball valves and other components.

2 Dry powder monitor (1 pcs)

Model: PF40

Effective spray rate: ≥40 Kg / s

Shot range: 40 ~ 45m

Rotation angle: horizontal 360 °, pitching -15 ° ~ 80 °

7.3 Dry powder gun and hose reel: 2 sets (30m)

Effective spray rate: 5Kg/s

Shot range: ≥12m
