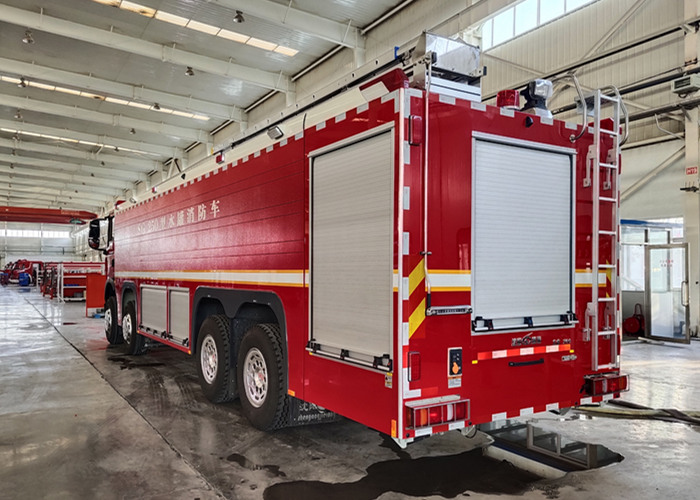

Shipping Mass 15270kg Water Tank Fire Truck 6x4 Drive 22m Turning
Diameter
Fire truck (also called fire fighting vehicle , Fire engine , Fire
fighting apparatus , Fire service truck , Fire and rescue truck ,
fire truck , fire fight truck , Foam fire tank truck , Fire
extinguishing foam tanker ) is a vehicle designed primarily for
fire fighting operation to extinguish fire efficiently to prevent
fire spread , reducing the loss caused by fire maximumly .
It is a necessary fire fighting vehicle for petrochemical
enterprises, oil terminals, oil depots, airports, large and
medium-sized city full-time fire brigade and enterprise fire
brigade.
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5347V4647D5 |
| Drive type | 6x4 |
| Cab | Flattop four door length |
| Wheelbase | 4600+1350mm |
| Max. speed | 85km/h |
| Min. turning diameter | <22m |
| Approach angle | 16° |
| Departure angle | 12° |
| Engine type | Pressure combustion, in-line six-cylinder, water cooling,
inter-cooling, direct injection diesel engine |
| Model | D10.38-40 |
| Max. power | 276kw |
| Max. torque | 1560N•m |
| Emission standard | China IV/ Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual 10forward gear |
Pipeline
| Outlet pipeline | 4×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet | 4×DN150 outside suction coupling 1×DN150 valve |
| Monitor pipeline | 1×DN125 monitor pipeline 1×DN125 butterfly valve |
| Residual water outlet | Water cock |
| Cooling water | Cooling installation |
