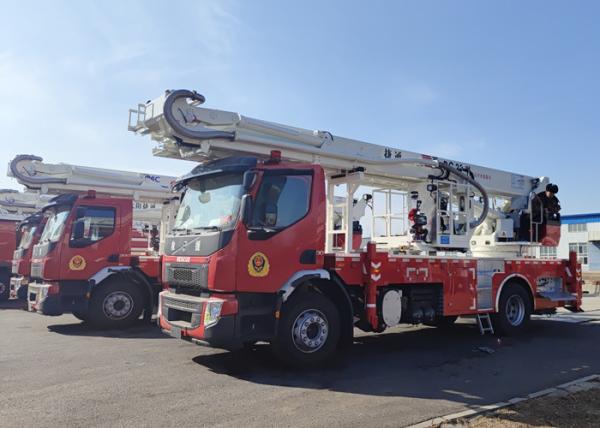

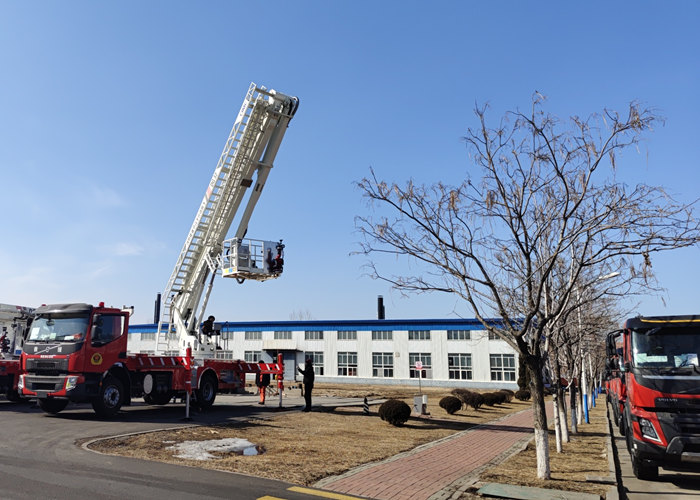

Shanghai Jindun 320kw/Hp 70m Aerial Tower Fire Truck

Ask Lasest Price
Brand Name :	Jindun
Model Number :	DG70
Certification :	ISO9001/CCC
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	150 days
Supply Ability :	120 units/year

Add to Cart

Product Details
Company Profile

Shanghai Jindun 320kw/Hp 70m Aerial Tower Fire Truck

Shanghai Jindun 320kw/Hp 70m Aerial Tower Fire Truck

Product Parameter

Water way control	Water way control mode:pneumatic control The position is left side of vehicle
Fire plumbing	Down part:stainless pipe + aluminum pipe
	Upper part: telescopic water pipe: aluminum alloy seamless tube Folding water pipe: aluminum alloy seamless tube Soft connection pipe: rubber soft tube
Water coupling	coupling	spec	Valve
	External Water Supply	2XDN80	Hose coupling with cover lid
	Upper Monitor inlet	1XDN125	Pneumatic butterfly valve
	Water supply from end of vehicle	2XDN80	Manual ball valve with cover
	Coupling type:quick coupling or slow coupling option
electric	turntable operative control, with comfortable chair
	Vehicle control mode:touch screen interface , computer control
	2 round siren light on top of cab siren alarm in cab camera reverse monitor vehicle radio interface preservation
	Automatic charger plug off wind meter in working cage overload warning in working platform video camera and disk video recording
Body frame	Step well ladder for climbing:each one for left and right side
	Body structure:aluminum alloy welding structure
	Body coaming:sticking with aluminum alloy plate
	Body platform/equipment box pump house top: oxidation antislipaluminum alloy plate
	Equipment box/pump house/tool box:Aluminum roller shutter
Body color	Turret, Ladder, stripe of tank and fender: light white Cabin, tank and body frame: red

MAIN FEATURES:

DG70Aerial Platform fire truck is the most advanced world class fire-fighting truck adopting PLC automatic computerized control technology is very effective and safe for rescue and fire-fighting application particularly for high rise buildings in the city and oil industries. The hydraulic and electrical control system are designed according to the latest international standards, to ensure good functionality, stability, safety and reliability, make this turntable ladder to be the ultimate solution for the actual fire-fighting and rescue of metropolitans, urban and rural areas.

Company Profile:

Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”

The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
